On-Off-On Rectangle 19.2x12.9mm Rocker Switch SPDT 16A 250VAC
by Canal
SKU 491880
MPN: MR2-130C7W-NBBB-28NC
Availability:
Only 2 left!
Original price
£0.98
-
Original price
£0.98
Original price
£0.98
£0.98
-
£0.98
Current price
£0.98

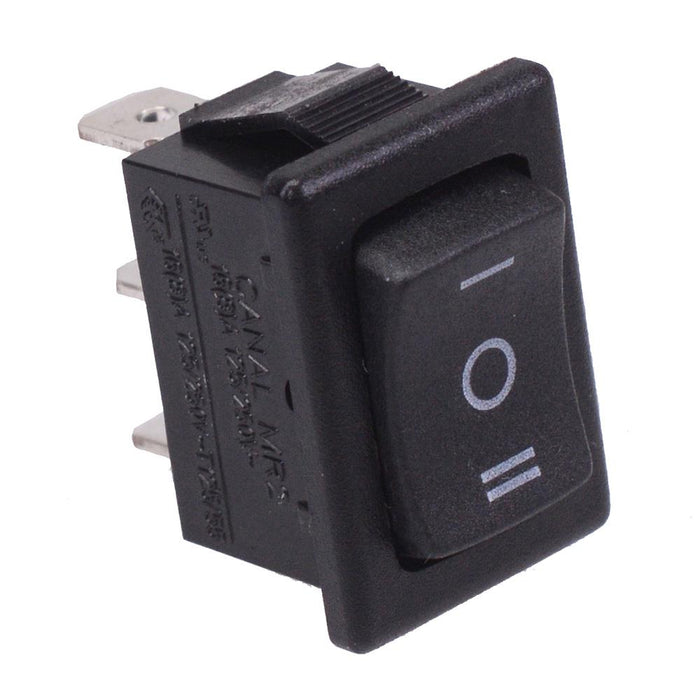

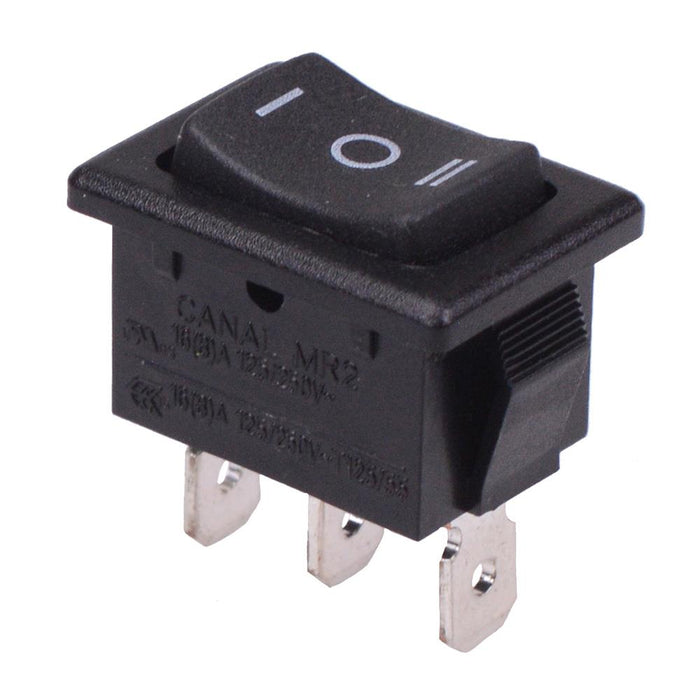

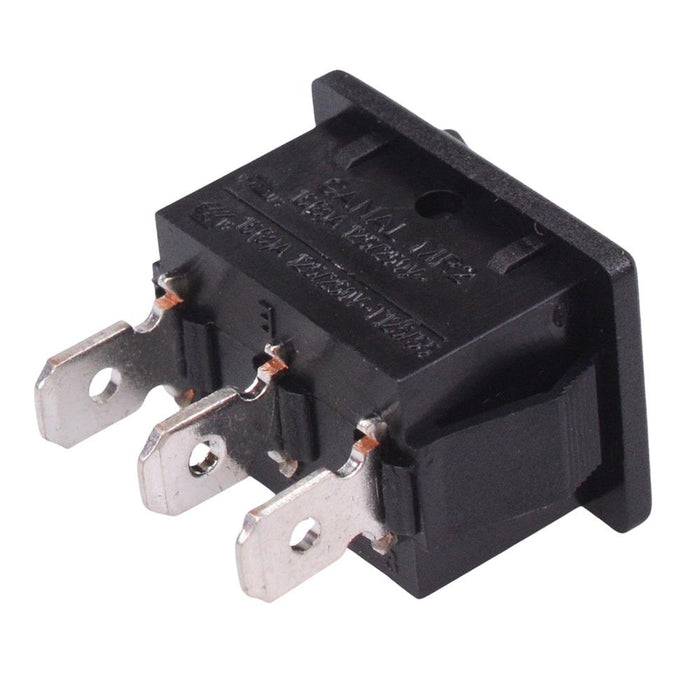

MR2 rectangular rocker switch featuring On-Off-On function and SPDT contacts. The switch features 16A current rating and is suitable for a wide range of switching applications.
Function: On-Off-On Contacts: SPDT Panel cut-out: 19.2 x 12.9mm Terminals: 4.8mm quick connect Rating: 16(8)A 250VAC Dimensions: 22.8 x 21.0 x 15.0mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 16(8)A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Panel Cut Out | 19.2 x 12.9mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
