On-Off-On-(On) Automotive 22mm Ignition Key Switch 15A 12V K3-33C1-07
by SCI
SKU 490819
MPN: K3-33C1-07
Availability:
200 in stock
Original price
£11.46
-
Original price
£11.46
Original price
£11.46
£11.46
-
£11.46
Current price
£11.46

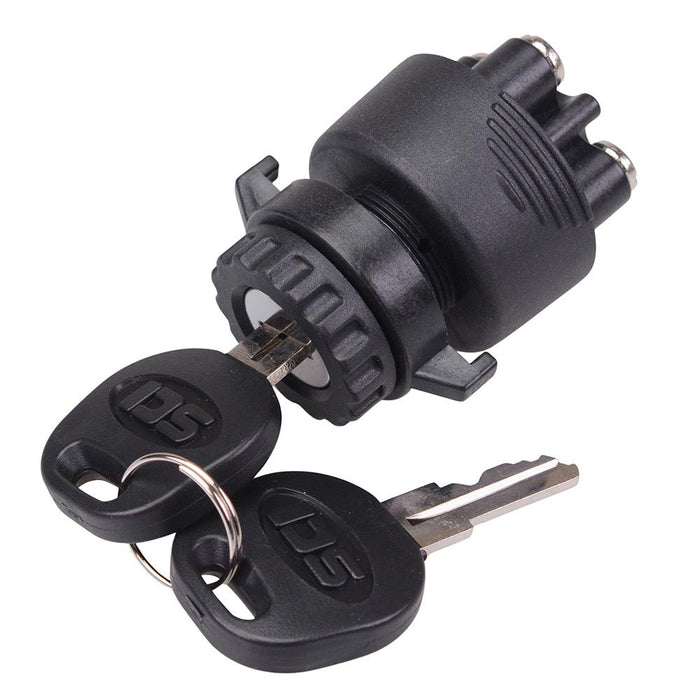

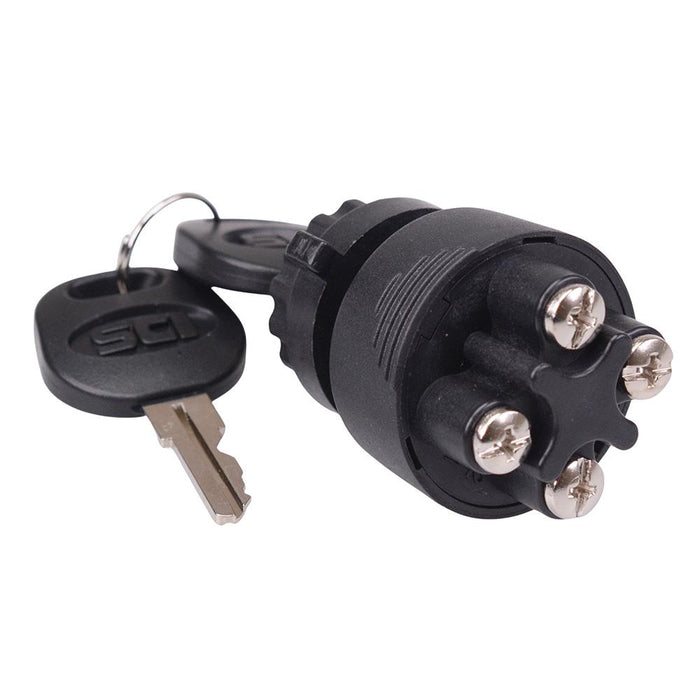

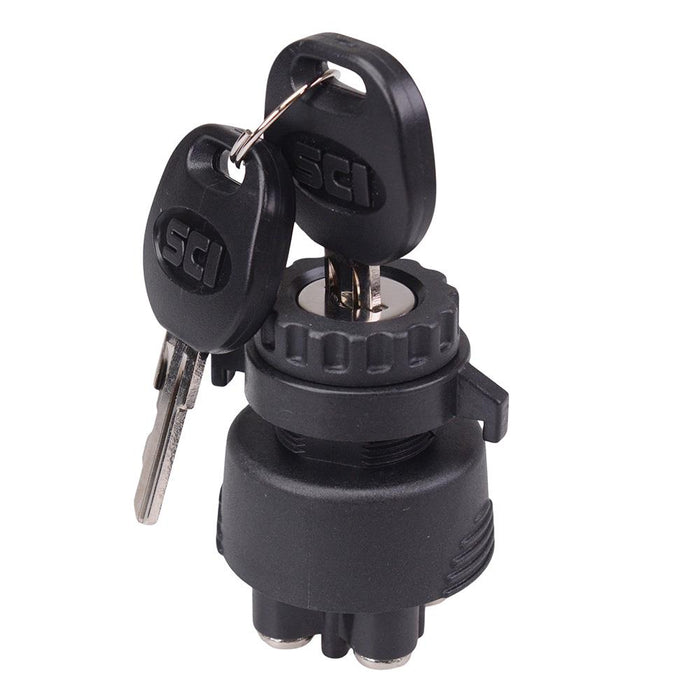

The K3-33C1-07 is an On-Off-On-(On) key switch featuring a black frame with a rugged yet reliable construction. The switch requires a 22mm panel cut-out and features a 15A current rating. The high current rating makes the switch suitable for a wide range of 12V automotive applications including use as an ignition switch.
On-Off-On-(On) operation Rating: 15A 12VDC Panel cut-out: 22mm Panel thickness: 5.5mm max Terminals: M4 screw Includes 2 keys Dimensions: 51 x 37mm (height x diameter)
Specification
| Actuation | Latching / Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Material | Copper Alloy |
| Contact Rating | 15A 12VDC |
| Current Rating | 15A |
| Key Index Angle | 30° |
| Material | PBT |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 4 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 22mm |
| Product Series | K3-33 |
| Protection Level | Copper Alloy |
| Switch Operation | On-Off-On-(On) |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
