On-Off-(On) Momentary Round Rocker Switch SPDT

SKU 482813

MPN: 482813

Availability:
285 in stock
Original price £0.68 - Original price £0.68
Original price
£0.68 Inc VAT
£0.68 - £0.68
Current price £0.68 Inc VAT

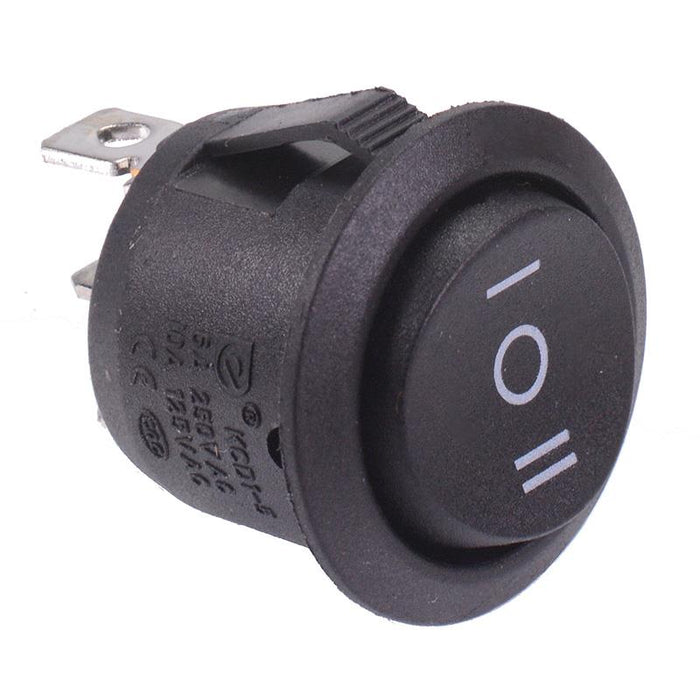

Circular rocker switch with SPDT contacts and on-off-(on) momentary action. The switch is designed for snap-in mounting and is suitable for consumer and commercial applications.

  • On-Off-(On) momentary action
  • SPDT contacts
  • 4.8mm quick connect terminals
  • Panel cut-out: 20mm
  • Dimensions: 29.2 x 23mm (Height x Diameter)
  • Rating: 10A 125VAC, 6A 250VAC
  • Specification
    Actuation Latching / Momentary
    Back order lead time 40 Days
    Contact configuration SPST
    Contact rating 6A 250VAC, 10A 125VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 3
    Operating temperature -25°C to +85°C
    Panel cut out 20mm
    Switch operation On-Off-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
