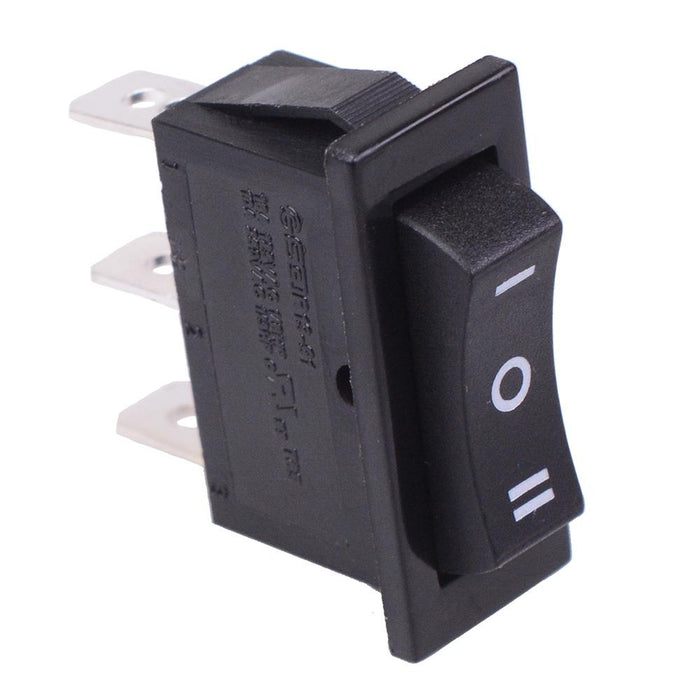

(On)-Off-(On) Momentary Rectangle Rocker Switch SPDT 10A 250VAC R13-91I-01
by SCI
SKU 491524
MPN: R13-91I-01-BB-7D
Availability:
20 in stock
Original price
£1.86
-
Original price
£1.86
Original price
£1.86
£1.86
-
£1.86
Current price
£1.86

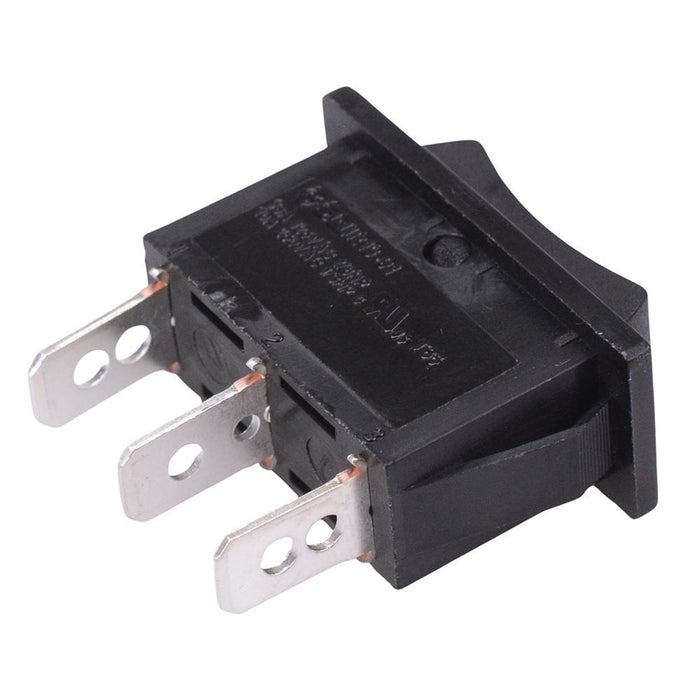

R13-91I-01-BB-7D slim rectangle rocker switch featuring SPDT contacts and momentary (On)-Off-(On) function. The switch requires a 30.2 x 11.2mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Function: momentary (On)-Off-(On) Contacts: SPDT Panel cut-out: 30.2 x 11.2mm Panel thickness: 0.75-3mm Rating: 10A 250VAC, 16A 125VAC 6.3mm quick connect terminals Dimensions: 33.2 x 14 x 35.6mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPDT |
| Contact Rating | 0.75-3mm |
| Current Rating | 16A |
| Electrical Life | 6,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 30.2 x 11.2mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
