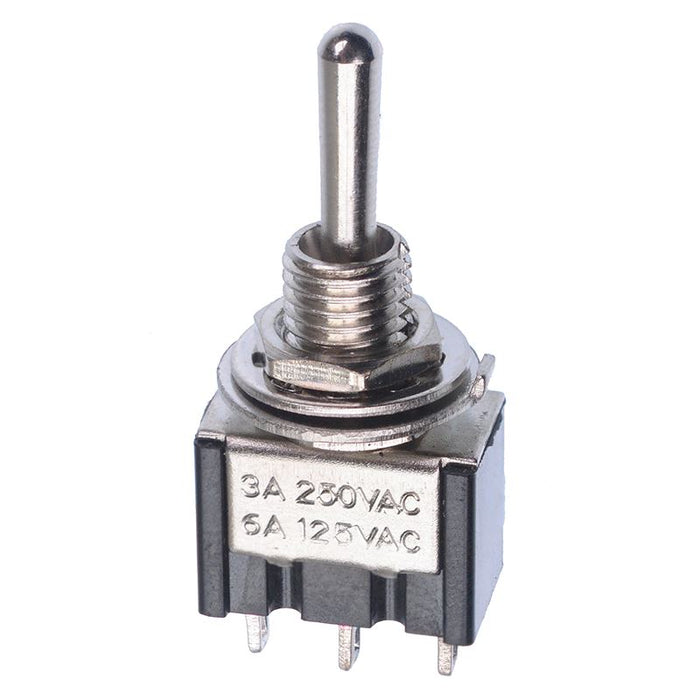

(On)-Off-(On) Momentary Miniature Toggle Switch SPDT
SKU 112004
MPN: 112004
Availability:
2138 in stock
Original price
£0.81
-
Original price
£0.81
Original price
£0.81
£0.81
-
£0.81
Current price
£0.81
Miniature size toggle switches with a momentary action suitable for a wide range of applications including model railway.
(On)-Off-(On) action SPDT contacts Switch returns to the center when released 6mm panel cut-out Solder terminals Secured with nut Maximum current: 3A Maximum voltage: 250VAC Dimensions: 33.3 x 7.9 x 13.2mm (Height x Width x Length) Maximum Panel Thickness: 3mm
Specification
Actuation | Momentary |
Back Order Lead Time | 45 Days |
Contact Configuration | SPDT |
Contact Rating | 3A 250VAC |
Current Rating | 3A |
Electrical Life | 10,000 Cycles |
Illuminated | No |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 3 |
Operating Temperature | -25°C to +85°C |
Panel Cut Out | 6mm |
Switch Operation | (On)-Off-(On) |
Terminal Type | Solder |
Voltage Rating | 250VAC |
