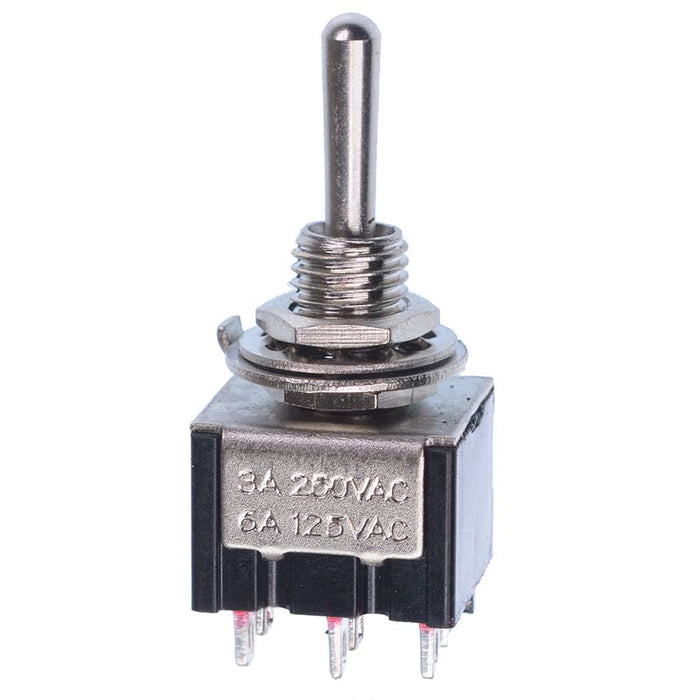

On-Off-On Miniature Toggle Switch DPDT

On-Off-On Miniature Toggle Switch DPDT

by Switch Electronics
SKU 112005

MPN: 112005

Availability:
1390 in stock
£0.96 - £0.96
£0.96
£0.96 - £0.96
£0.96
Miniature size toggle switches suitable for a wide range of applications where a small reliable switch is required.

  • On-Off-On action
  • DPDT contacts
  • 6mm panel cut-out
  • Solder terminals
  • Secured with nut
  • Maximum current: 3A
  • Maximum voltage: 250VAC
  • Dimensions: 33.3 x 13.2 x 12.7mm (Height x Width x Length)
  • Maximum Panel Thickness: 3mm
    • Download Product Data Sheet PDF
    Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Contact Configuration DPDT
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 10,000 Cycles
    Illuminated No
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 3
    Operating Temperature -25°C to +85°C
    Panel Cut Out 6mm
    Switch Operation On-Off-On
    Terminal Type Solder
    Voltage Rating 250VAC
    Request a quote

    Customer Reviews

    Based on 2 reviews
    50%
    (1)
    50%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    John Marriage

    DPDT miniature switches.
    Perfect for my control panel; good price and delivered very quickly

    R
    Roderick Young
    Switches from Switch Electronics

    I needed a variety minature toggle switches to replace some which were so poorly made that the plastic had started to separate from the metal and even the "8"mm nuts were of varying sizes and wouldn't fit my spanner.
    Switch Electronics seemed a good place to find new ones; they delivered what I'd hoped for.
    Their website had data sheets for the switches, so I could check exact sizes before cutting new holes in my mounting board.
    The switches arrived quickly and are of good quality.
