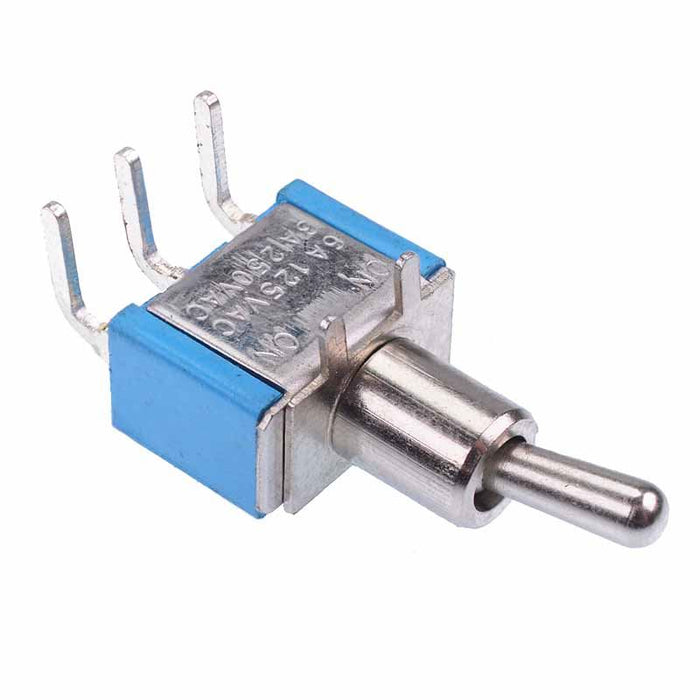

On-Off-On Miniature Horizontal PCB Toggle Switch SPDT

SKU 482846

MPN: 482846

Availability:
358 in stock
Original price £0.59 - Original price £0.59
Original price
£0.59 Inc VAT
£0.59 - £0.59
Current price £0.59 Inc VAT
Mini On-Off-On toggle switch featuring SPDT contacts and a compact size, suitable for mounting horizontally directly to a PCB.

  • On-Off-On action
  • SPDT contacts
  • Solder PCB terminals
  • Rating: 6A 125VAC, 3A 250VAC
  • Terminal pitch: 4.7mm
  • Dimensions: 27 x 13.2 x 11.1mm (Length x Width x Height)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPDT
    Contact rating 6A 125VAC, 3A 250VAC
    Current rating 6A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 3
    Operating temperature -25°C to +85°C
    Pitch 4.7mm
    Switch operation On-Off-On
    Terminal type Through Hole
    Voltage rating 250VAC
