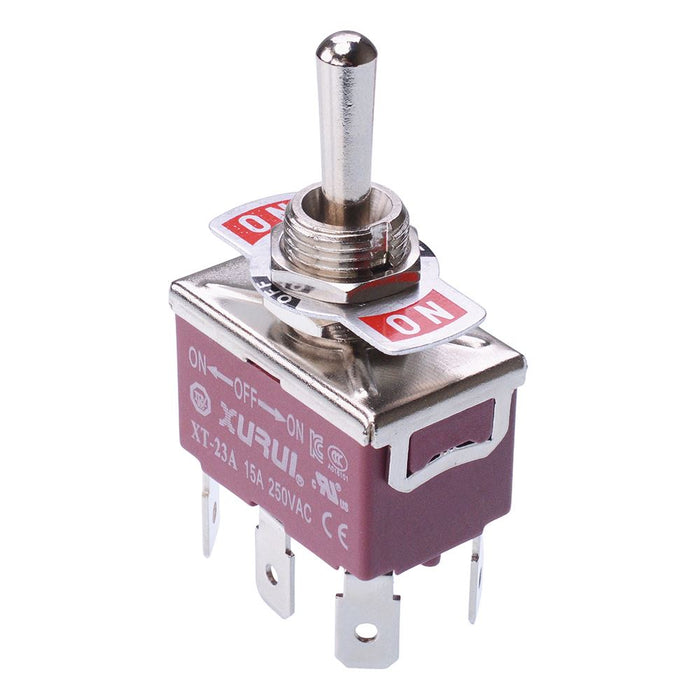

On-Off-On DPDT Toggle Switch 250V AC 15A
SKU 112039
MPN: 112039
Availability:
294 in stock
Original price
£3.53
-
Original price
£3.53
Original price
£3.53
£3.53
-
£3.53
Current price
£3.53
DPDT toggle switch with a On-Off-On operation providing a reliable mechanism suitable for panel mounting applications.
Contact current: 15A Contact voltage: 250VAC 12mm panel cut-out 6.3mm quick-connect terminals Metal lever actuator Includes nameplate CCC, CE, TUV approved Dimensions: 61 x 32.5 x 20mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPDT |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 12mm |
| Protection Level | IP40 |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
