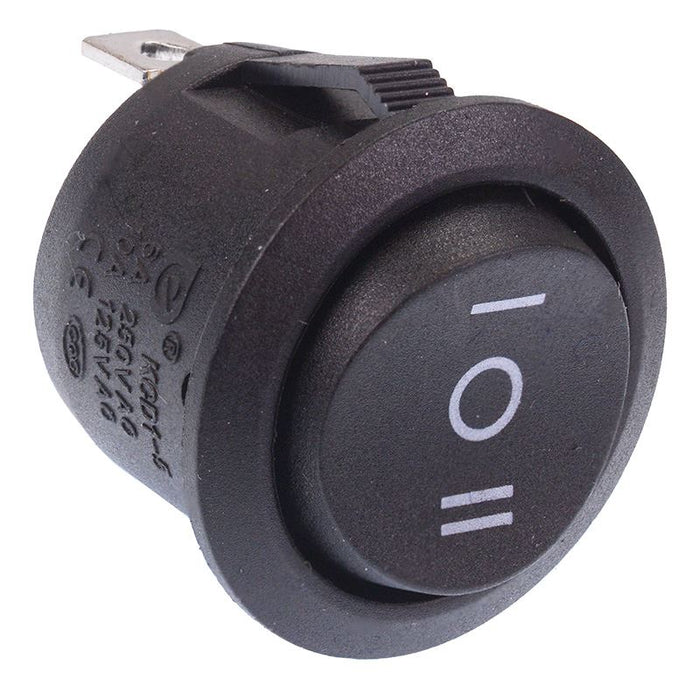

On-Off-On Black Round 20mm Rocker Switch SPDT

SKU 130004

MPN: 130004

Availability:
501 in stock
Original price £0.58 - Original price £0.58
Original price
£0.58 Inc VAT
£0.58 - £0.58
Current price £0.58 Inc VAT
Circular rocker switch with SPDT contacts and on-off-on action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

  • On-off-on action
  • SPDT contacts
  • 4.8mm quick connect terminals
  • Panel cut-out: 20mm
  • Dimensions: 29.2 x 23mm (Height x Diameter)
  • Maximum current: 6A
  • Maximum voltage: 250VAC
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPDT
    Contact rating 6A 250VAC, 10A 125VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 3
    Operating temperature -25°C to +85°C
    Panel cut out 20mm
    Switch operation On-Off-On
    Terminal type Quick Connect
    Voltage rating 250VAC
