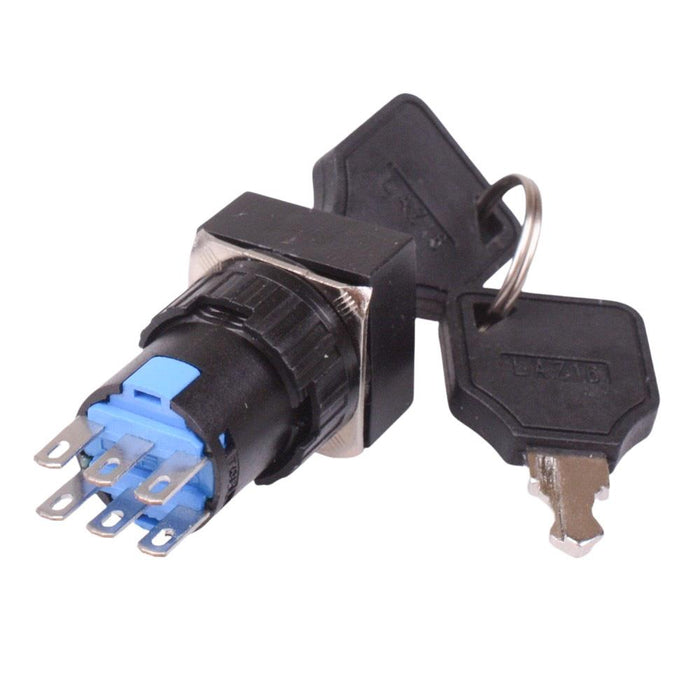

On-Off-On 3 Position 16mm Latching Key Switch 2NO/2NC 3A 250V
SKU 489714
MPN: FL6-074 On-Off-On
Availability:
42 in stock
Original price
£3.03
-
Original price
£3.03
Original price
£3.03
£3.03
£3.03
-
£3.03
Current price
£3.03
3 position square latching industrial key switch featuring DPDT contacts, suitable for 16.2mm panel cut-outs. The switch is designed for a wide range of applications including control panels, automation, factories and general purpose uses.
Latching operation 3 positions, 45° each turn Key removable in all positions 2NO/2NC DPDT contacts Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm 2.8x0.5mm solder/quick-connect terminals Dimensions: 39 x 17 x 17mm (height x width x length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Key Index Angle | 45° |
| Key Withdrawal Position | 1, 2 & 3 |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16mm |
| Terminal Type | Quick connect |
| Voltage Rating | 250VAC |
