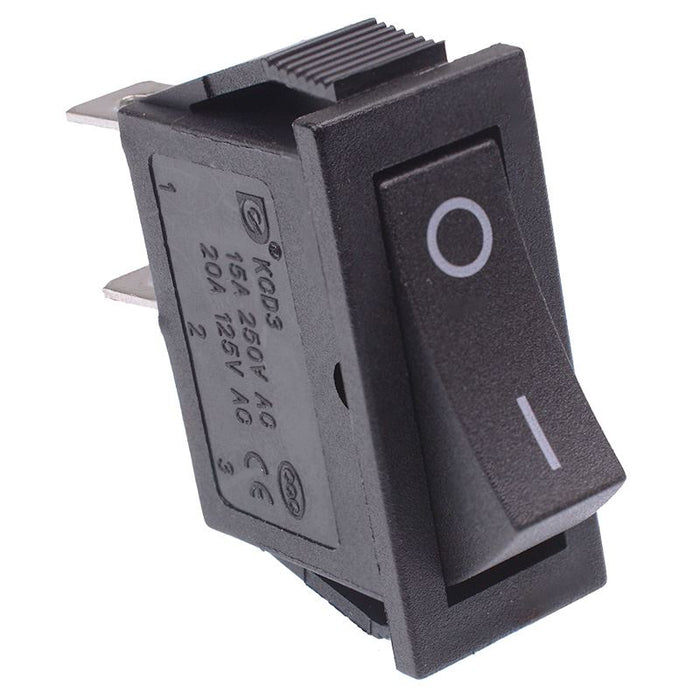

On-Off Long Rectangle Rocker Switch SPST
SKU 132006
MPN: 132006
Availability:
88 in stock
Original price
£0.67
-
Original price
£0.67
Original price
£0.67
£0.67
-
£0.67
Current price
£0.67
Rectangle rocker switch with SPST contacts and On-Off action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of applications.
SPST contacts On-Off action 6.3mm quick connect terminals Snap-in mounting Panel cut-out: 28 x 10mm Maximum voltage: 250VAC Maximum current: 15A Dimensions: 36.3 x 13.5 x 30.5mm (Height x Width x Length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | SPST |
| Contact Rating | 15A 250VAC, 20A 125VAC |
| Current Rating | 20A |
| Electrical Life | 10,000+ Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28 x 10mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
