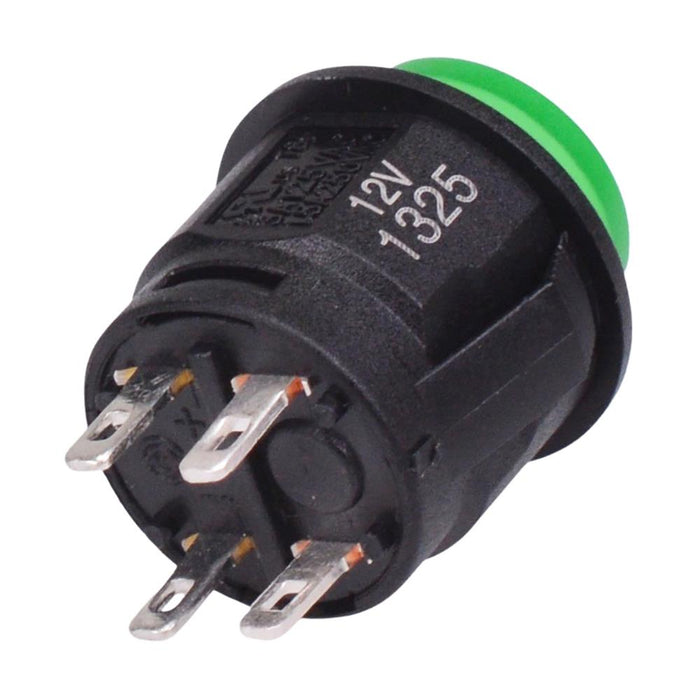

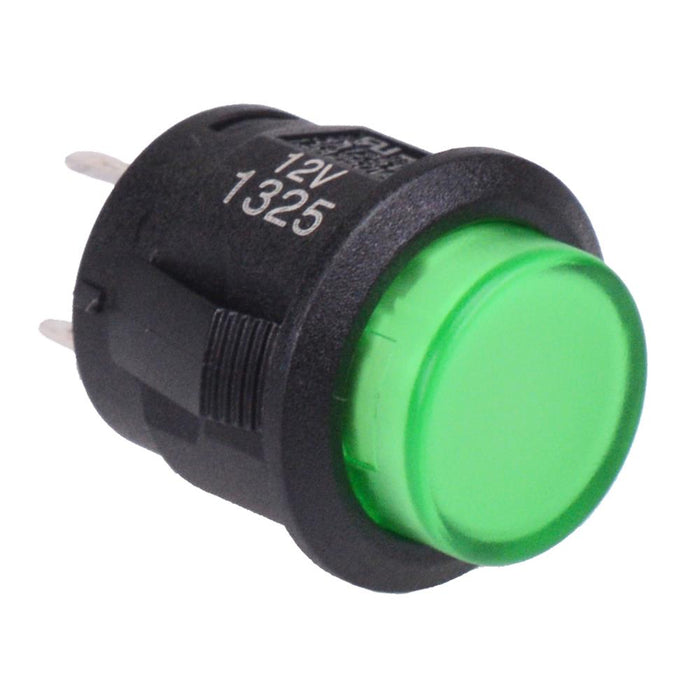

On-Off Latching Green 12V LED 16mm Push Button Switch SPST R13-523BL-05
by SCI
SKU 491493
MPN: R13-523BL-05-BG-L-1
Availability:
15 in stock
Original price
£1.94
-
Original price
£1.94
Original price
£1.94
£2.04
£2.04
-
£2.04
Current price
£2.04
Green 12V illuminated R13-523BL-05 push button switch featuring a latching On-Off function and SPST contacts. The switch features an LED lamp and requires a 16mm panel cut-out. The switch features solder terminals and is suitable for a wide range of DC applications.
Function: latching On-Off Contacts: SPST Green LED illuminated voltage: 12VDC Panel cut-out: 16mm Panel thickness: 3mm max Rating: 1.5A 250VAC, 3A 125VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 3A 125VAC, 1.5A 250VAC |
| Current Rating | 3A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 3mm Max |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
