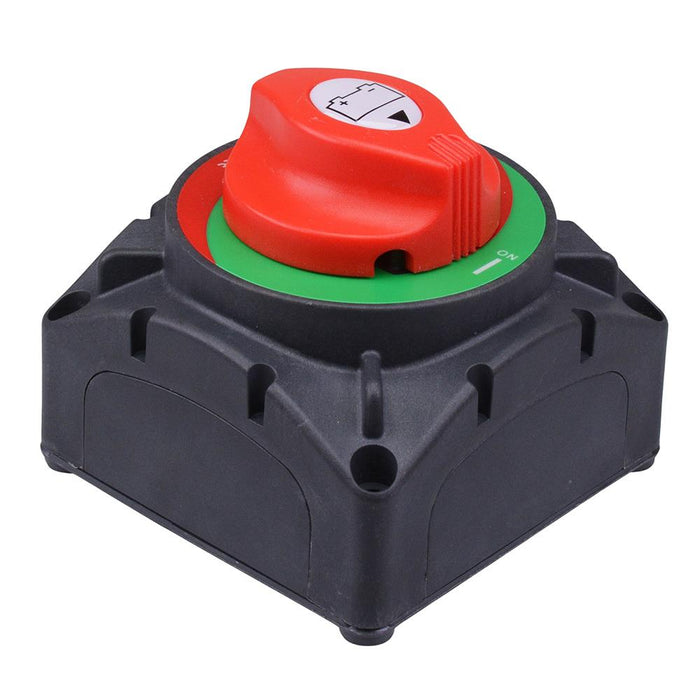

On-Off Heavy Duty Battery Isolator Switch 600A 12-48VDC

Heavy duty battery cut-off switch featuring a rotary actuator and high curent capacity. The switch features 2*M12 stud terminals and square housing with removable panels for wire access. The isolator is suitable for a wide range of applications up to 48VDC including automotive.

2*M12 studs

On-Off function

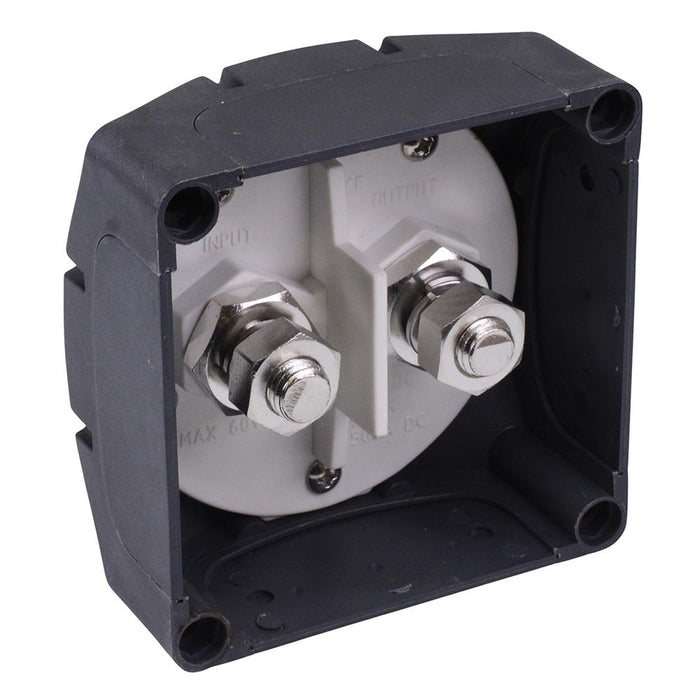

Removable side panels

Continuous current rating: 600A (12V)

Crank current rating: 2500A (12V)

Voltage rating: 12-48VDC

Dimensions: 102 x 102 x 90mm (length x width x height)

Includes fastening hardware and instructions
