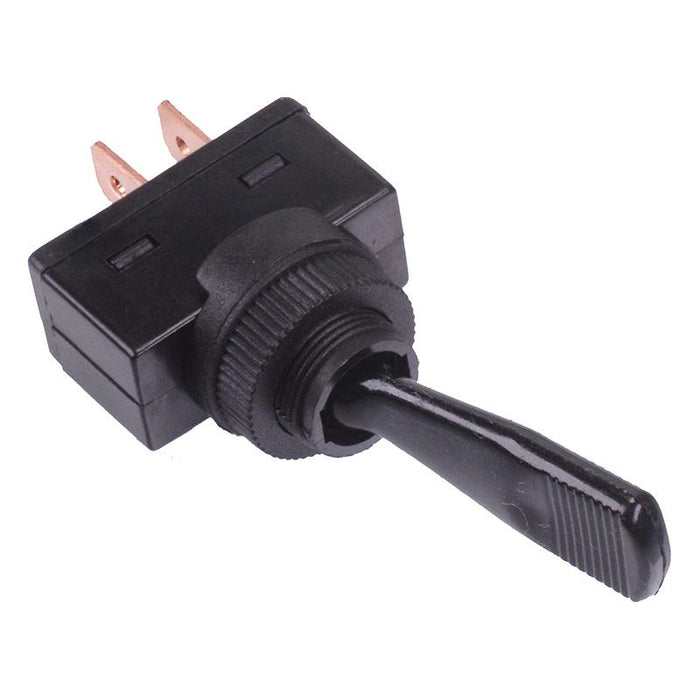

On-Off Black Toggle Flick Switch SPST 20A 12VDC

SKU 482225

MPN: 482225

Availability:
188 in stock
Original price £0.89 - Original price £0.89
Original price
£0.89 Inc VAT
£0.89 - £0.89
Current price £0.89 Inc VAT
On-Off flick toggle switch featuring a large actuator and quick connect terminals, suitable for panel mount applications including automotive.

  • On-Off action
  • SPST contacts
  • Panel cut-out: 12mm
  • 6.3mm quick connect terminals
  • Rating: 20A 12VDC
  • Actuator dimensions: 27 x 11.2mm (height x width)
  • Dimensions: 62 x 26.2 x (height x length)
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Colour Black
    Contact configuration SPST
    Contact rating 20A 12VDC
    Current rating 20A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 12VDC
