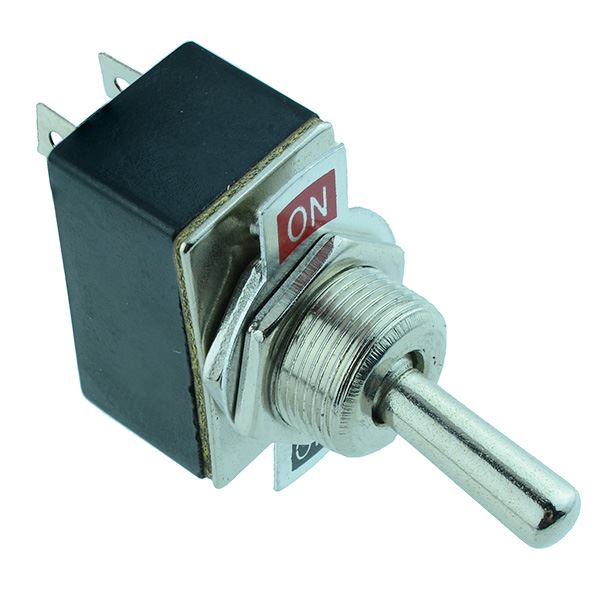

On-Off 2 Position 12mm Toggle Switch SPST 2A 250VAC

SKU 480894

MPN: 480894

15 in stock
Original price £1.19 - Original price £1.19
Original price
£1.19 Inc VAT
£1.19 - £1.19
Current price £1.19 Inc VAT
On-Off standard toggle switch featuring SPST contacts and 2 positions, suitable for low power applications requiring a reliable economical switch.

  • 12mm panel cut-out
  • On-Off action
  • SPST contacts
  • Rating: 2A 250VAC, 4A 125VAC
  • Solder terminals
  • Dimensions: 42.3 x 25 x 14mm (Height x Wdith x Depth)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPST
    Contact rating 2A 250VAC, 4A 125VAC
    Current rating 4A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 250VAC
