On-Off 16mm Metal Key Switch SPST 1A
by APEM
SKU 487371
MPN: 3332
Availability:
408 in stock
Original price
£1.97
-
Original price
£1.97
Original price
£1.97
Inc VAT
£1.97
-
£1.97
Current price
£1.97
Inc VAT

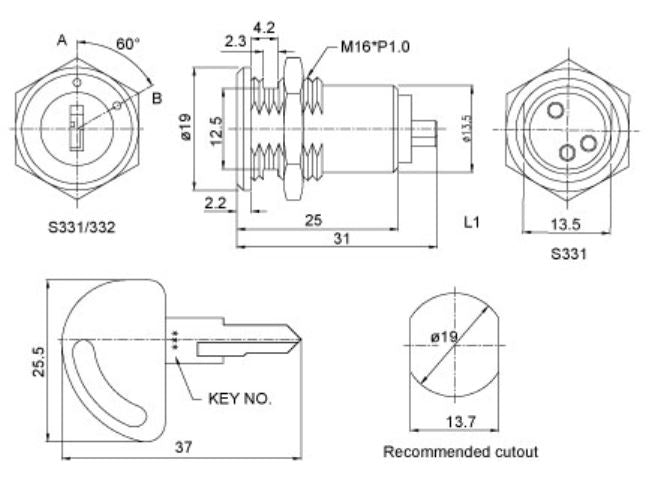

Metal key switch featuring SPST contacts and On-Off function, suitable for panel mounting. The switch features 2 keys removable in both positions and requires a 16mm panel cut-out size.
On-Off function SPST contacts Solder terminals Panel cut-out: 16mm Key removable in both positions Chrome plated zinc alloy housing Rating: 1A 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Contact configuration | SPST |
| Contact material | Silver Plated |
| Contact rating | 1A 250VAC |
| Current rating | 1A |
| Key index angle | 60° |
| Key withdrawal position | 1 & 2 |
| Material | Chrome Plated Zinc Alloy |
| Mounting style | Panel Mount |
| Number of positions | 2 |
| Panel cut out | 16mm |
| Protection level | Silver Plated |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 250VAC |
