On-Off 12mm Metal Key Switch SPST 1A
by APEM
SKU 487535
MPN: 3373L-1
Availability:
Out of stock
Sold out
Original price
£2.12
-
Original price
£2.12
Original price
£2.12
Inc VAT
£2.12
-
£2.12
Current price
£2.12
Inc VAT

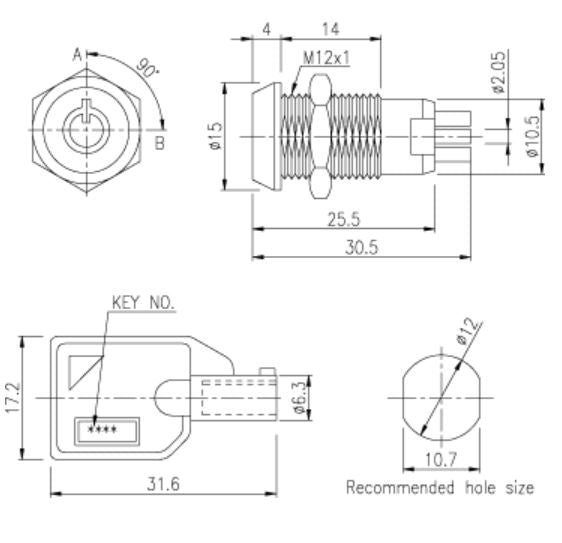

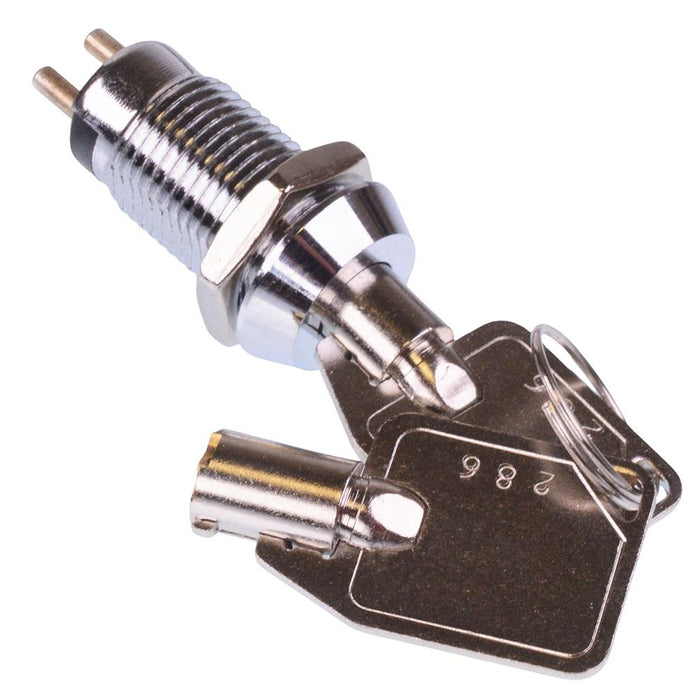

Metal key switch featuring SPST contacts and On-Off function, suitable for panel mounting. The switch features tubular 2 keys removable in the 'Off' position and requires a 12mm panel cut-out size.
On-Off function SPST contacts Solder terminals Panel cut-out: 12mm Key removable in the 'Off' position Chrome plated zinc alloy housing Rating: 1A 125VAC, 0.5A 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Silver Plated |
| Contact rating | 0.5A 250VAC |
| Current rating | 1A |
| Key index angle | 90° |
| Key withdrawal position | 1 |
| Material | Chrome Plated Zinc Alloy |
| Mounting style | Panel Mount |
| Number of positions | 2 |
| Panel cut out | 12mm |
| Protection level | Silver Plated |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 250VAC |
