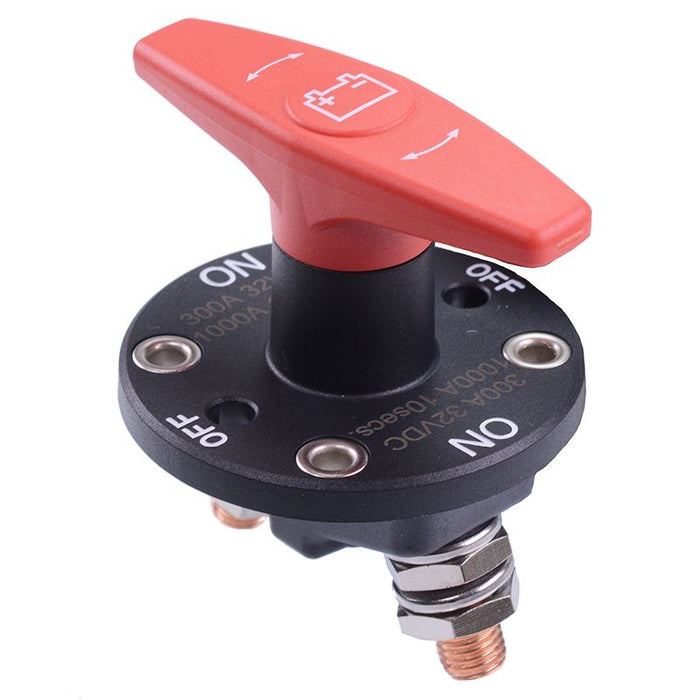

Off-On Waterproof Battery Switch 300A IP67 A23-10

by SCI
SKU 483200

MPN: A23-10

Availability:
Out of stock
Sold out
Original price £16.06 - Original price £16.06
Original price
£16.06 Inc VAT
£16.06 - £16.06
Current price £16.06 Inc VAT
Off-On battery isolator switch featuring an IP67 protection level and removable actuator. The switch features a 300A 32VDC rating making it ideal for a wide range of 12V and 24V waterproof applications including use with cars, boats, bikes, motorhomes, trucks and caravans.

  • Off-On action
  • Removable actuator
  • SPST contacts
  • IP67 protection level
  • Termination: M10 nuts
  • Continuous rating: 300A 32VDC
  • Cranking rating: 1000A 10 seconds
  • Actuator length: 78mm
  • Dimensions: 85.7 x 67.5mm (Height x Diameter)
  • ]
    Specification
    Back order lead time 120 Days
    Contact configuration SPST
    Continuous rating 300A 32VDC
    Current rating 300A
    Material PBT
    Mounting style Panel Mount
    Number of positions 2
    Operating temperature -30°C to +60°C
    Protection level IP67
    Switch operation Off-On
    Terminal type M10 Studs
    Voltage rating 32VDC
