Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST
SKU 489307
MPN: PBS-28B-3
Availability:
490 in stock
Original price
£2.89
-
Original price
£2.89
Original price
£2.89
Inc VAT
£2.89
-
£2.89
Current price
£2.89
Inc VAT
Momentary anti vandal push button switch featuring a metal body and screw terminals. The switch features a recessed design and requires a 19mm panel cut-out diameter, suitable for a wide range of applications including automotive.

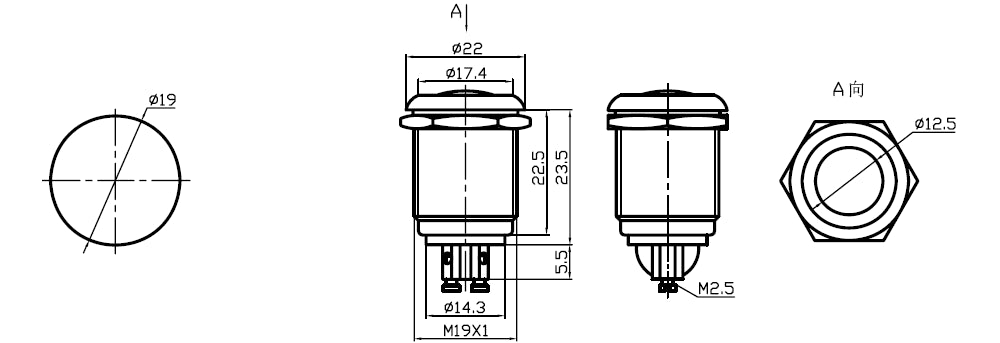

Off-(On) momentary action SPST contacts Rating: 4A 125VAC, 2A 250VAC Metal body Screw terminals Panel cut-out: 19mm Diameter: 22mm
Specification
| Actuation | Momentary |
| Back order lead time | 120 Days |
| Contact configuration | SPST |
| Contact rating | 4A 125VAC, 2A 250VAC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19mm |
| Switch operation | Off-(On) |
| Terminal type | Screw |
| Voltage rating | 250VAC |
