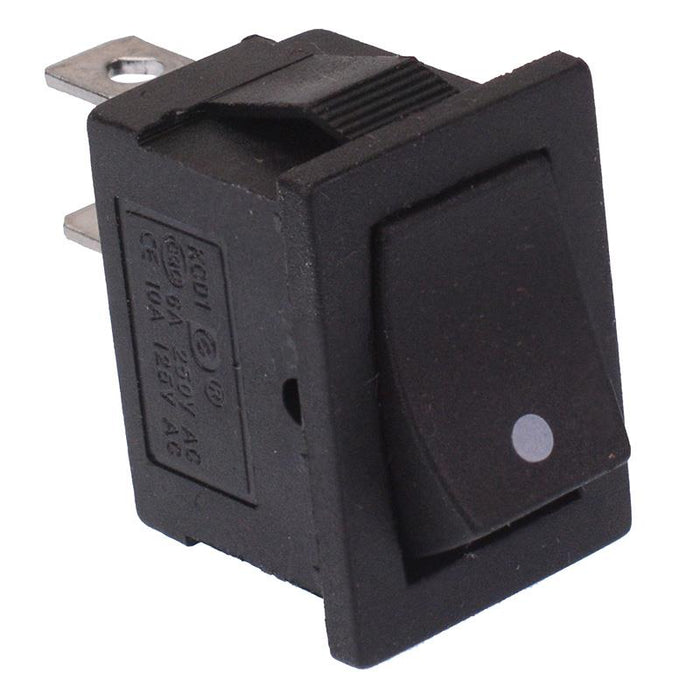

Off-(On) Momentary Rectangle Rocker Switch Dot SPST

SKU 485606

MPN: 485606

Availability:
Out of stock
Sold out
Original price £0.75 - Original price £0.75
Original price
£0.75 Inc VAT
£0.75 - £0.75
Current price £0.75 Inc VAT
Momentary rectangle rocker switch featuring a dot marking and SPST contacts. The switch is designed for snap-in mounting and is suitable for a wide range of applications including industrial, consumer and automotive.

  • Off-(On) momentary action
  • SPST contacts
  • 4.8mm quick connect terminals
  • Panel cut-out: 19.2 x 13mm
  • Dimensions: 25 x 21 x 15mm (Height x Length x Width)
  • Maximum current: 6A
  • Maximum voltage: 250VAC
  • Specification
    Actuation Momentary
    Back order lead time 40 Days
    Colour Black
    Contact configuration SPST
    Contact rating 6A 250VAC
    Current rating 6A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 19.2 x 13mm
    Switch operation Off-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
