Off-(On) Momentary Rectangle 19.2x12.9mm Rocker Switch SPST 16A 250VAC
by Canal
SKU 491881
MPN: MR2-140C5W-NBBB-28NC
Availability:
1000 in stock
Original price
£0.77
-
Original price
£0.77
Original price
£0.77
£0.77
£0.77
-
£0.77
Current price
£0.77

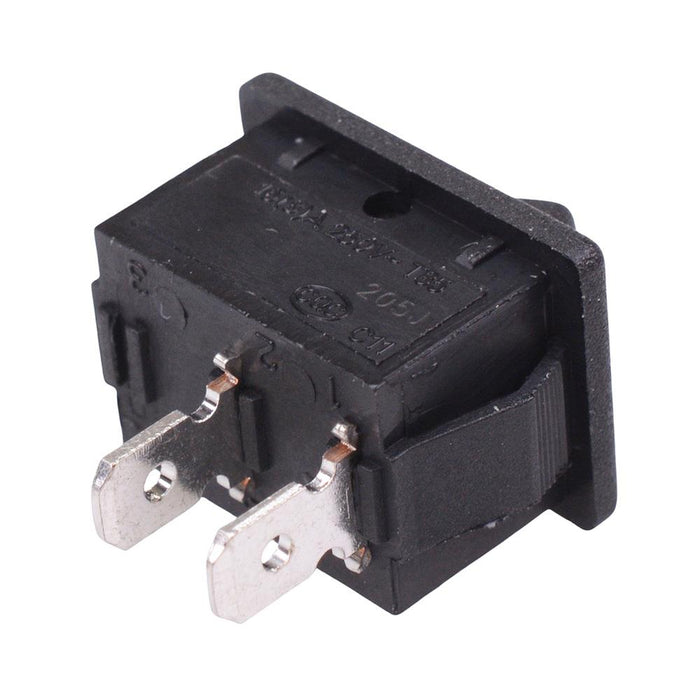

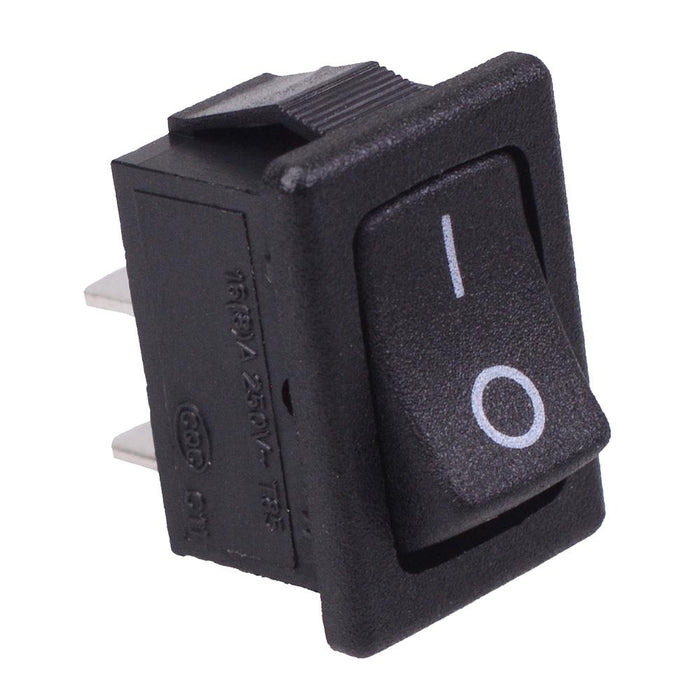

MR2 momentary rectangular rocker switch featuring Off-(On) function and SPST contacts. The switch features 16A current rating and is suitable for a wide range of switching applications.
Function: momentary Off-(On) Contacts: SPST Panel cut-out: 19.2 x 12.9mm Terminals: 4.8mm quick connect Rating: 16(8)A 250VAC Dimensions: 24.5 x 21.0 x 15.0mm (height x length x width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 16(8)A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 19.2 x 12.9mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
