Off-(On) Momentary Long Paddle Handle Toggle Switch SPST R13-96G-01
by SCI
SKU 491459
MPN: R13-96G-01
Availability:
15 in stock
Original price
£2.76
-
Original price
£2.76
Original price
£2.76
£2.76
-
£2.76
Current price
£2.76

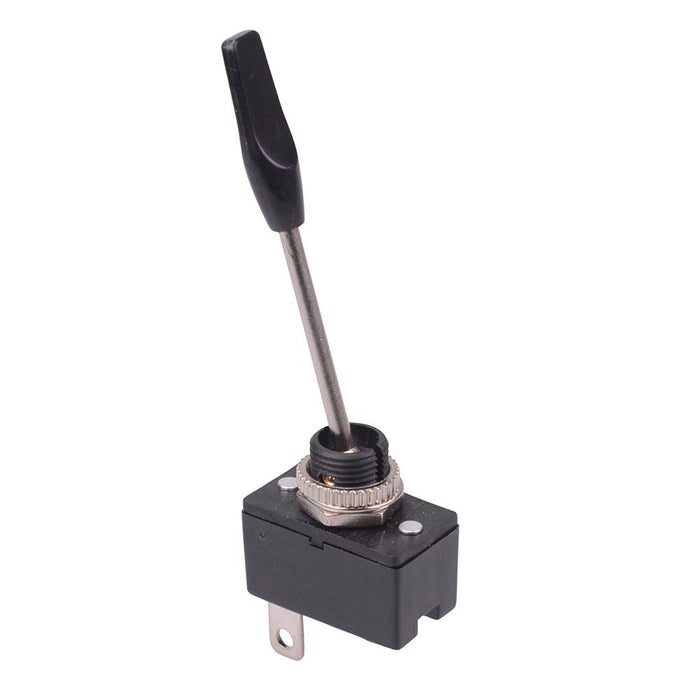

The R13-96G-01 is a momentary black toggle switch featuring a long paddle actuator and SPST contacts. The switch requires a 12mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated to 10A 12VDC and is suitable for a wide range of DC and automotive applications.
Function: momentary Off-(On) Contacts: SPST Panel cut-out: 12.2mm Panel thickness: 4mm max Rating: 15A 12VDC Actuator length: 60mm 6.3mm quick connect terminals
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Rating | 15A 12VDC |
| Current Rating | 15A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4mm Max |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
