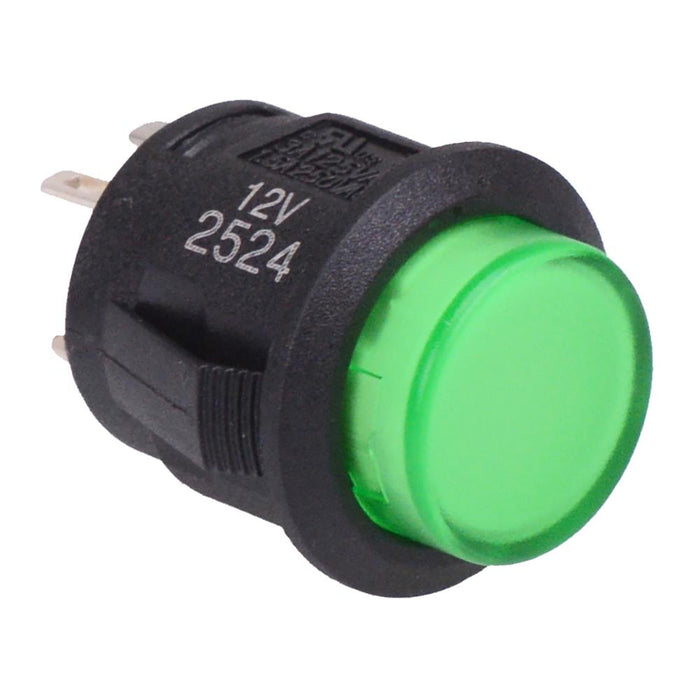

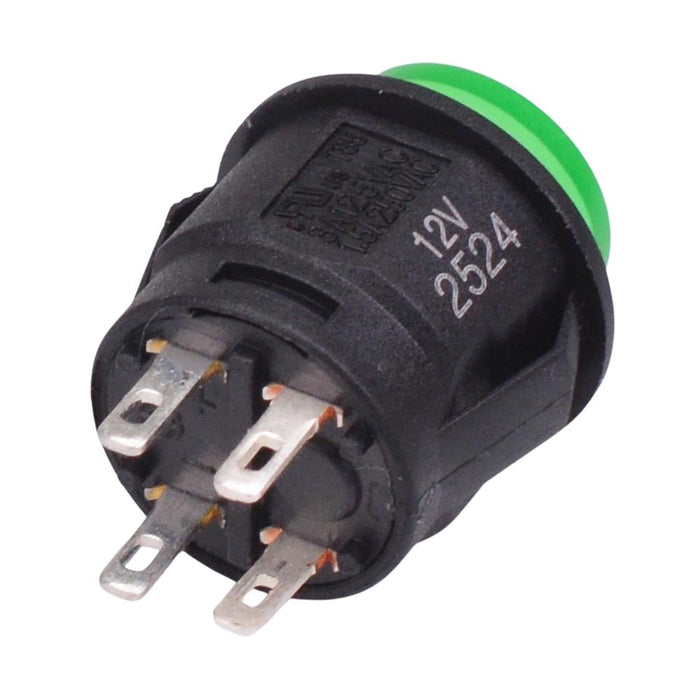

Off-(On) Momentary Green 12V LED 16mm Push Button Switch SPST R13-523AL-05
by SCI
SKU 491491
MPN: R13-523AL-05-BG-L-1
Availability:
35 in stock
Original price
£1.75
-
Original price
£1.75
Original price
£1.75
£1.84
£1.84
-
£1.84
Current price
£1.84
Green 12V illuminated R13-523AL-05 push button switch featuring a momentary Off-(On) function and SPST contacts. The switch features an LED lamp and requires a 16mm panel cut-out. The switch features solder terminals and is suitable for a wide range of DC applications.
Function: momentary Off-(On) Contacts: SPST Green LED illuminated voltage: 12VDC Panel cut-out: 16mm Panel thickness: 3mm max Rating: 1.5A 250VAC, 3A 125VAC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 3A 125VAC, 1.5A 250VAC |
| Current Rating | 3A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 3mm Max |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
