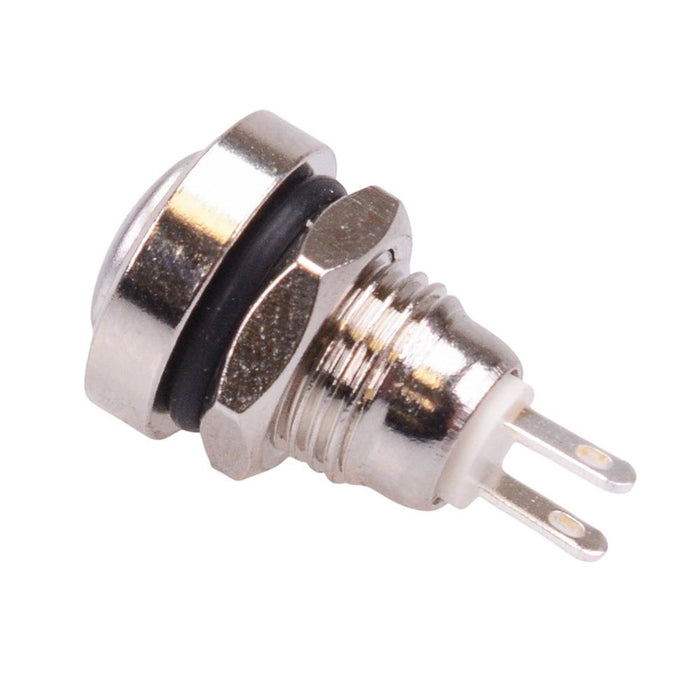

Off-(On) Momentary 8mm Metal Push Button Switch SPST
SKU 490476
MPN: SLM8BJ1
Availability:
6 in stock
Original price
£2.68
-
Original price
£2.68
Original price
£2.68
£2.68
£2.68
-
£2.68
Current price
£2.68
Miniature metal push button switch featuring 8mm panel cut-out and solder contacts. The switch features a 1A current rating and is suitable for low power applications with limited space.
Off-(On) function SPST contacts Panel cut-out: 8mm Rating: 1A 250VAC Solder contacts Dimensions: 19.8 x 11.3mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPST |
| Contact Rating | 1A 250VAC |
| Current Rating | 1A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 8mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
