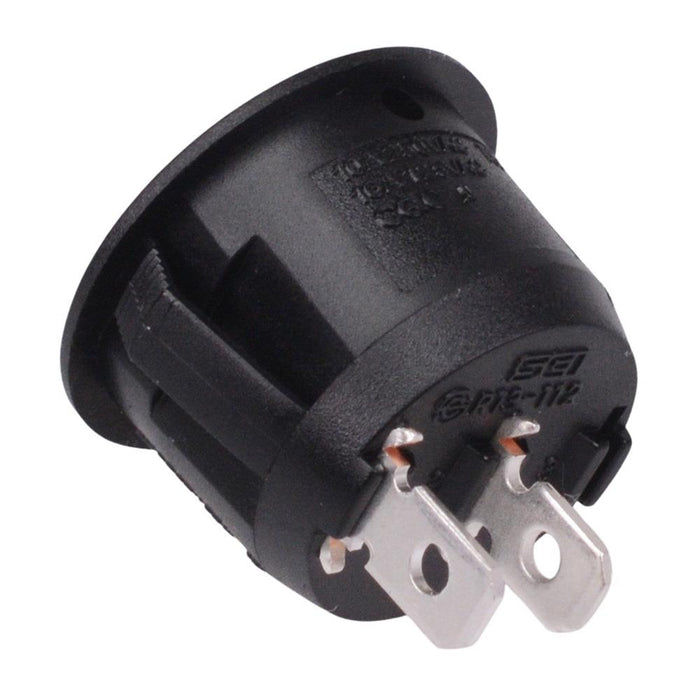

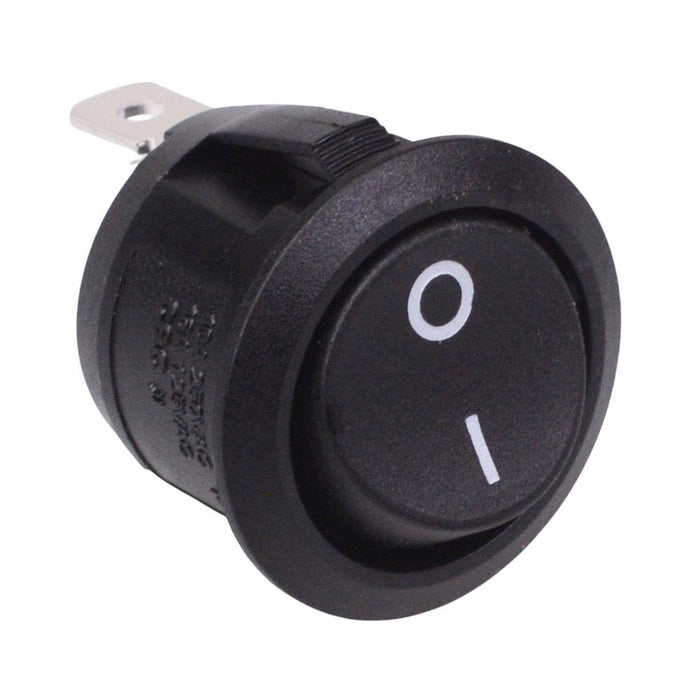

Off-(On) Momentary 20mm Round Rocker Switch SPST 10A R13-112F-02-BB-2D
by SCI
SKU 491479
MPN: R13-112F-02-BB-2D
Availability:
98 in stock
Original price
£1.50
-
Original price
£1.50
Original price
£1.50
£1.58
£1.58
-
£1.58
Current price
£1.58
Momentary circular rocker switch featuring Off-(On) function and SPST contacts. The switch requires a 20.2mm panel cut-out and features 4.8mm quick connect terminals. The switch is suitable for a wide range of AC applications.
Function: Off-(On) Contacts: SPST Panel cut-out: 20.2mm Panel thickness: 0.7-3mm Terminals: 4.8mm quick connect Rating: 10A 250VAC, 16A 125VAC SCI R13-112 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 16A 125VAC, 10A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.7-2.5mm |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
