Off-(On) Momentary 19mm Vandal Resistant Push Switch SPST
SKU 481609
MPN: 481609
Availability:
71 in stock
Original price
£4.70
-
Original price
£4.70
Original price
£4.70
Inc VAT
£4.70
-
£4.70
Current price
£4.70
Inc VAT

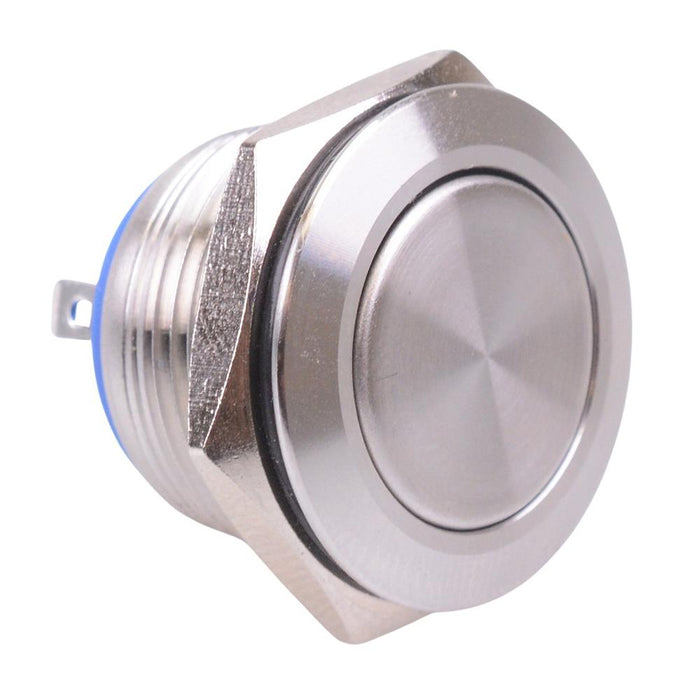

Vandal resistant push button switch manufactured from stainless steel, featuring a momentary Off-(On) operating and SPST contacts. The switch features IP67 protection and requires a 19mm cut-out making it suitable for a wide range of applications.
Off-(On) momentary action SPST contacts IP67 protection rating 19mm panel cut-out diameter Solder terminals Rating: 3A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Contact configuration | SPST |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19mm |
| Protection level | IP65 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
