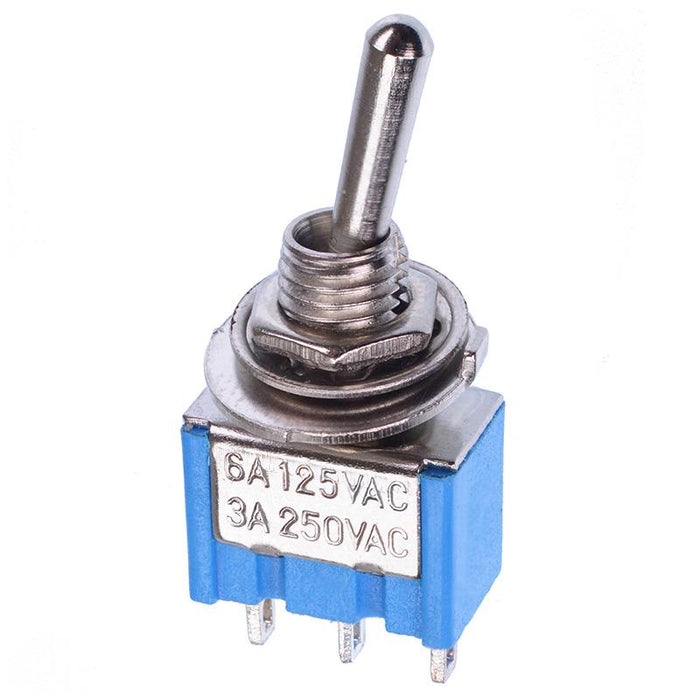

Off-(On) Mini Momentary Toggle Switch SPST

SKU 482839

MPN: 482839

Availability:
1296 in stock
Original price £0.57 - Original price £0.57
Original price
£0.57 Inc VAT
£0.57 - £0.57
Current price £0.57 Inc VAT
Miniature size toggle switch featuring Off-(On) momentary action and SPST contacts suitable for a wide range of applications where a small reliable switch is required.

  • Off-(On) action
  • SPST contacts
  • 6mm panel cut-out
  • Solder terminals
  • Secured with nut
  • Rating: 6A 125VAC, 3A 250VAC
  • Dimensions: 33.3 x 7.9 x 13.2mm (Height x Width x Length)
  • Maximum Panel Thickness: 3mm
  • Specification
    Actuation Momentary
    Back order lead time 40 Days
    Contact configuration SPST
    Contact rating 6A 125VAC, 3A 250VAC
    Current rating 6A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 6mm
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 250VAC
