Off-On Battery Switch 100A A23-5
by SCI
SKU 483202
MPN: A23-5
Availability:
66 in stock
Original price
£8.66
-
Original price
£8.66
Original price
£8.66
£8.66
-
£8.66
Current price
£8.66

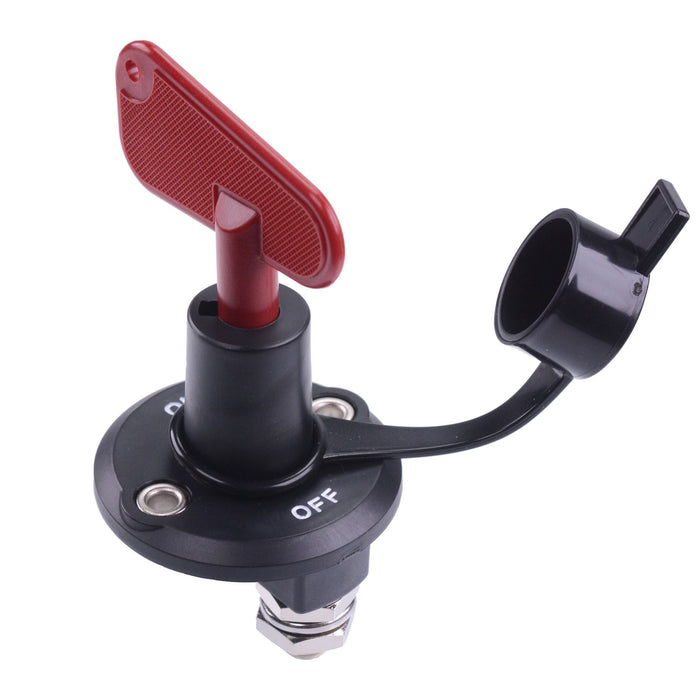

Off-On battery isolator switch featuring a removable key 100A 12VDC continous rating. The switch is suitable for securing to a panel and is ideal for 12V and 24V applications including automotive, motorbikes, caravans, motorhomes and trucks.
Off-On action Removable actuator Cap for when the key is removed SPST contacts Termination: M10 nuts Continuous rating: 100A 12VDC, 50A 24VDC Cranking rating: 500A 10 seconds Dimensions (excluding key): 70 x 57.5mm (Height x Diameter)
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Continuous Rating | 100A 12VDC, 50A 24VDC |
| Current Rating | 100A |
| Material | PBT |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Switch Operation | Off-On |
| Terminal Type | M10 Studs |
| Voltage Rating | 24VDC |
