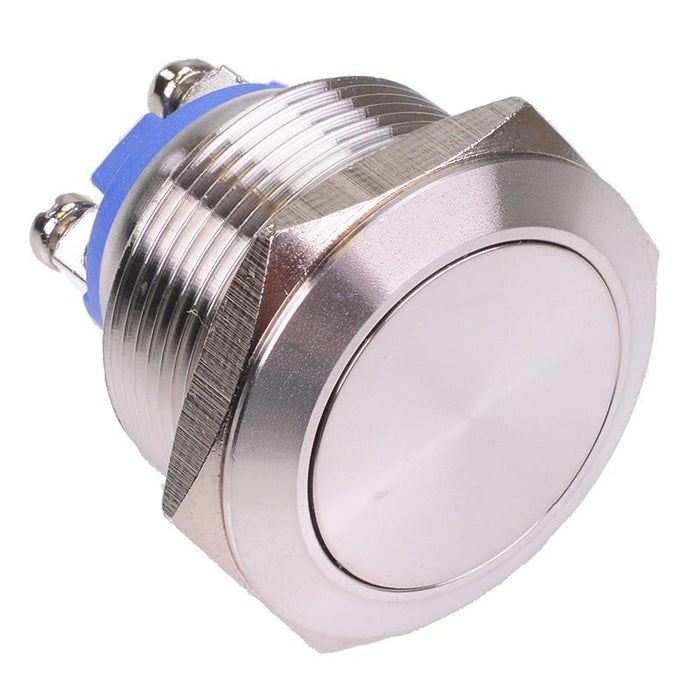

Off-(On) 22mm Stainless Steel Vandal Resistant Push Button Switch 2A SPST Screw

SKU 484363

MPN: 484363

Availability:
Out of stock
Sold out
Original price £9.17 - Original price £9.17
Original price
£9.17 Inc VAT
£9.17 - £9.17
Current price £9.17 Inc VAT
Vandal resistant push button switch manufactured from stainless steel featuring a flat button and suitable for a 22mm panel cut-out. The switch features NO contacts and an IP65 sealed construction, suitable for a wide range of applications.

  • Momentary action
  • SPST contacts
  • 22mm panel cut-out
  • Stainless steel body
  • 2.8 x 0.5mm terminals
  • 2A 48VDC rating
  • 1,000,000 cycles mechanical life
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Contact configuration SPST
    Contact rating 2A 48VDC
    Current rating 2A
    Electrical life 200,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Gold Plated Brass
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +55°C
    Panel cut out 22mm
    Panel thickness 1-8mm
    Protection level IP65
    Switch operation Off-(On)
    Terminal type Screw
    Voltage rating 48VDC
