Off-(On) 19mm Domed Stainless Steel Vandal Resistant Push Button Switch 2A SPST
SKU 484357
MPN: 484357
Availability:
25 in stock
Original price
£4.53
-
Original price
£4.53
Original price
£4.53
Inc VAT
£4.53
-
£4.53
Current price
£4.53
Inc VAT

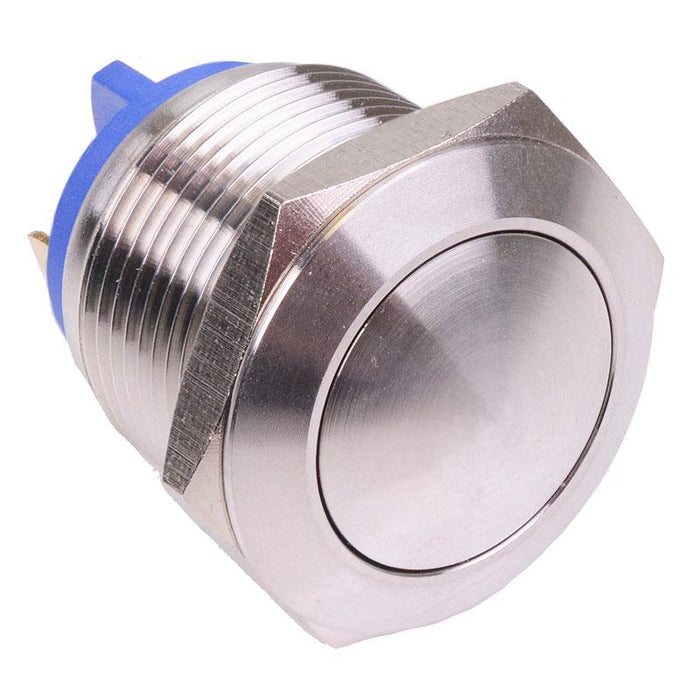

Vandal resistant push button switch manufactured from stainless steel featuring a domed button and suitable for a 19mm panel cut-out. The switch features NO contacts and an IP65 sealed construction, suitable for a wide range of applications.
Momentary action SPST contacts 19mm panel cut-out Stainless steel body 2.8 x 0.5mm terminals 2A 48VDC rating 1,000,000 cycles mechanical life
Specification
Actuation | Momentary |
Back order lead time | 45 Days |
Contact configuration | SPST |
Contact rating | 2A 48VDC |
Current rating | 2A |
Electrical life | 200,000 Cycles |
Illuminated | No |
Illumination colour | Non Illuminated |
Material | Stainless Steel |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -25°C to +55°C |
Panel cut out | 19mm |
Panel thickness | 1-8mm |
Protection level | IP65 |
Switch operation | Off-(On) |
Terminal type | Quick Connect |
Voltage rating | 48VDC |
