Off-(On) 16mm Stainless Steel Vandal Resistant Push Button Switch 2A SPST Screw

SKU 484354

MPN: 484354

Availability:
40 in stock
Original price £4.31 - Original price £4.31
Original price
£4.31 Inc VAT
£4.31 - £4.31
Current price £4.31 Inc VAT

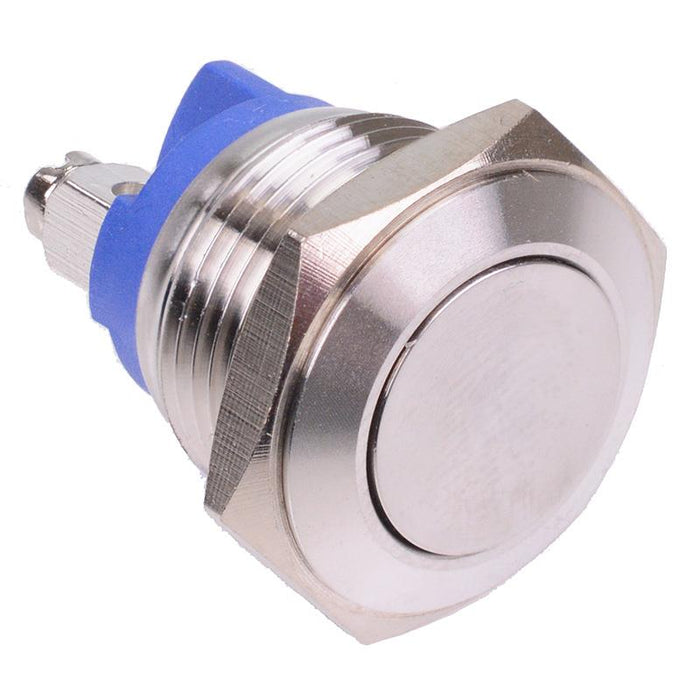

Vandal resistant push button switch manufactured from stainless steel featuring a flat button and suitable for a 16mm panel cut-out. The switch features NO contacts and an IP65 sealed construction, suitable for a wide range of applications.

  • Momentary action
  • SPST contacts
  • 16mm panel cut-out
  • Stainless steel body
  • Screw terminals
  • 2A 48VDC rating
  • 1,000,000 cycles mechanical life
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Contact configuration SPST
    Contact rating 2A 48VDC
    Current rating 2A
    Electrical life 200,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +55°C
    Panel cut out 16mm
    Panel thickness 1-6mm
    Protection level IP65
    Switch operation Off-(On)
    Terminal type Screw
    Voltage rating 48VDC
