Off-(On) 16mm Domed Stainless Steel Vandal Resistant Push Button Switch 2A SPST
SKU 484352
MPN: 484352
Availability:
Out of stock
Sold out
Original price
£4.44
-
Original price
£4.44
Original price
£4.44
£4.44
-
£4.44
Current price
£4.44

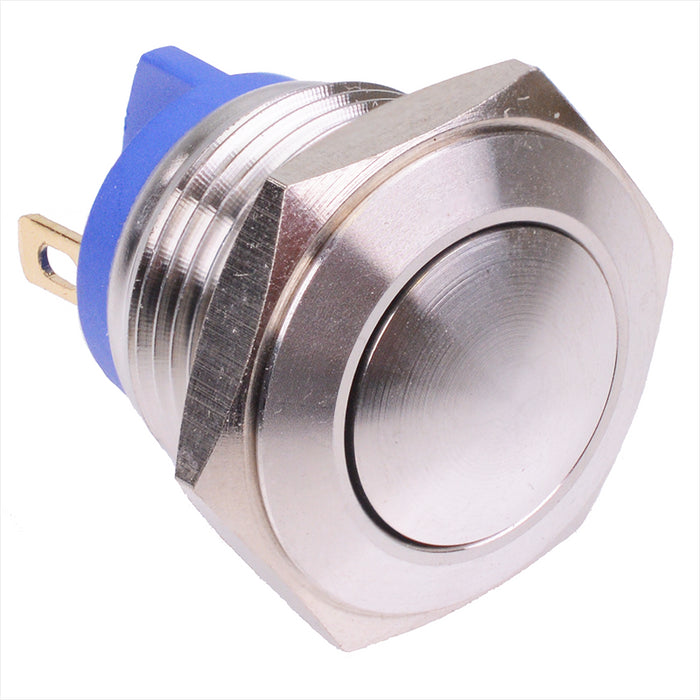

Vandal resistant push button switch manufactured from stainless steel featuring a domed button and suitable for a 16mm panel cut-out. The switch features NO contacts and an IP65 sealed construction, suitable for a wide range of applications.
Momentary action SPST contacts 16mm panel cut-out Stainless steel body 2.8 x 0.5mm terminals 2A 48VDC rating 1,000,000 cycles mechanical life
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Rating | 2A 48VDC |
| Current Rating | 2A |
| Electrical Life | 200,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 1-6mm |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 48VDC |
