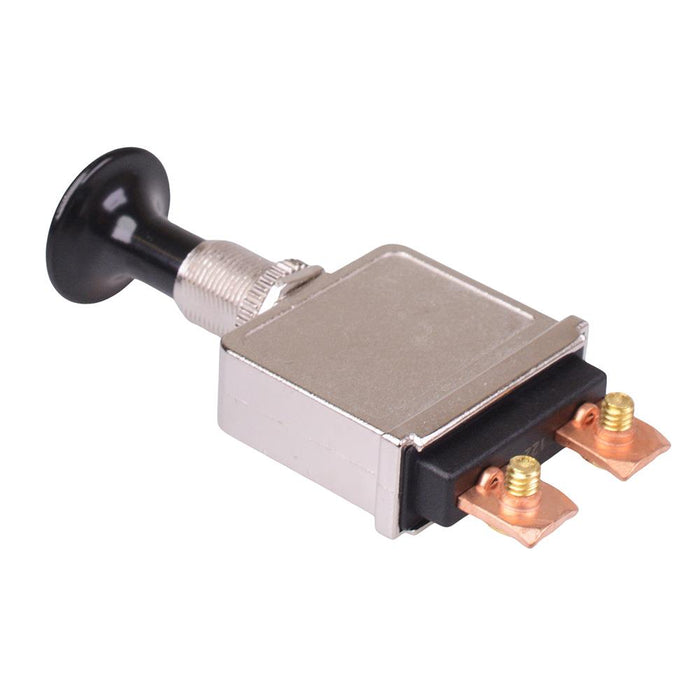

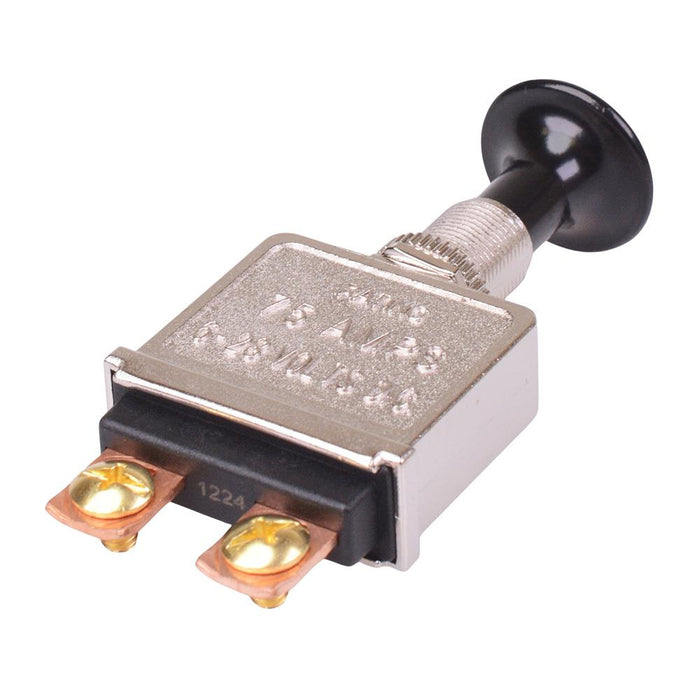

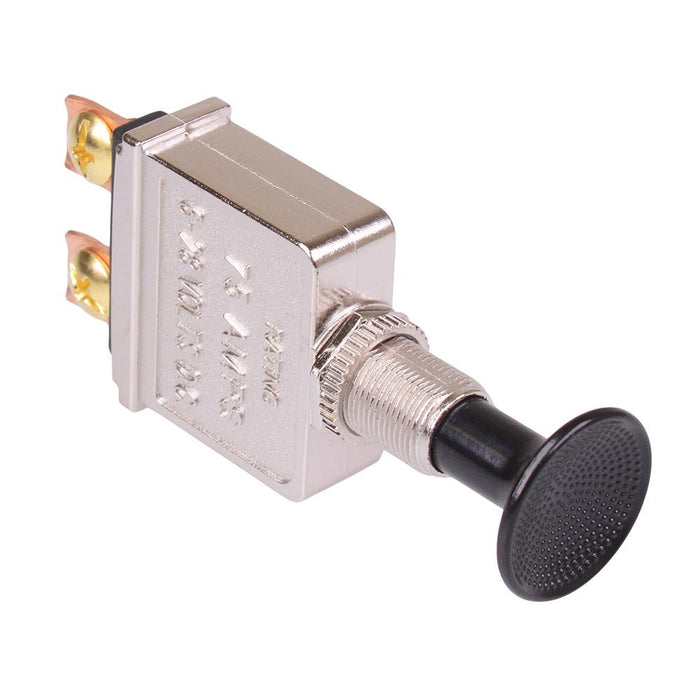

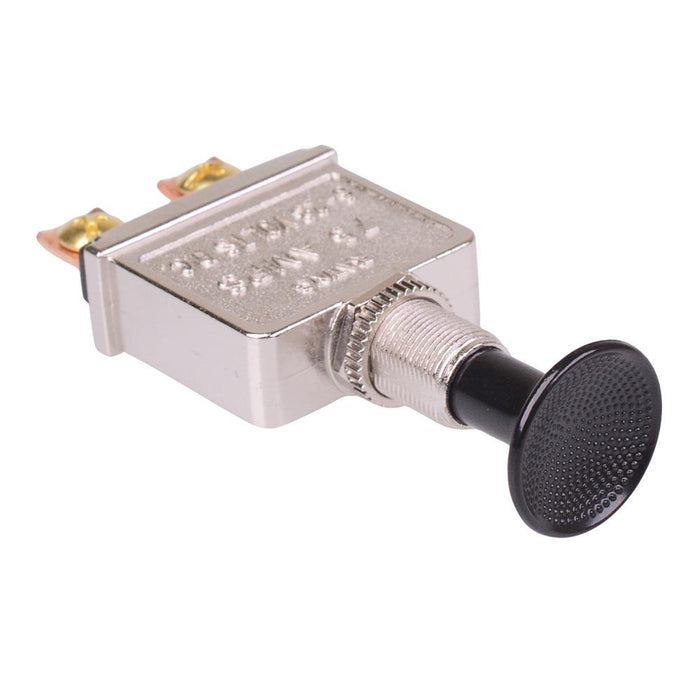

Off-On 12mm Push Pull Switch 75A 12V A3-32-B-14-HR
by SCI
SKU 490837
MPN: A3-32-B-14-HR
Availability:
141 in stock
Original price
£3.52
-
Original price
£3.52
Original price
£3.52
£3.52
£3.52
-
£3.52
Current price
£3.52
The A3-32-B-14 is a push-pull switch featuring a slim package and Off-On operation. The switch features screw terminals and requires a 12mm cut-out, suitable for automotive and other applications.
SPST contacts Off-On operation Screw terminals 12mm panel cut-out Voltage rating: 6-28VDC Current rating: 75A Dimensions: 82.1 x 36.5 x 14.5mm (height x length x width) SCI A3-32 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | SPST |
| Contact Material | Copper Alloy |
| Contact Rating | 75A 28VDC |
| Current Rating | 75A |
| Illuminated | No |
| Material | Nickel Plated Zinc Alloy |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Product Series | A3-32 |
| Switch Operation | Off-On |
| Terminal Type | Screw |
| Voltage Rating | 28VDC |
