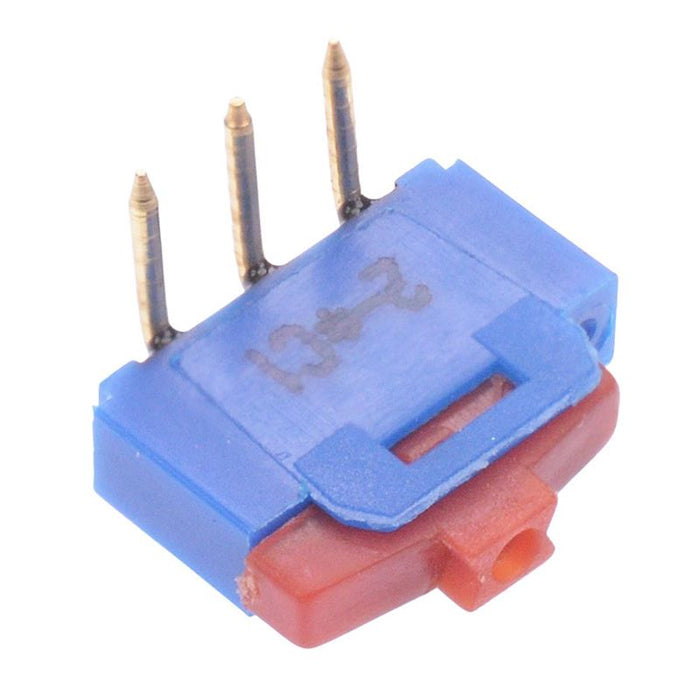

NK236WH APEM On-On Sub-Miniature Raised Actuator Right Angle PCB Slide Switch 500mA 12V SPDT

SKU 486228


45 in stock
Original price £1.75 - Original price £1.75
Original price
£1.75 Inc VAT
£1.75 - £1.75
Current price £1.75 Inc VAT
The NK236WH is a right angle sub-miniature slide switch featuring a raised actuator and SPDT contacts, manufactured by APEM. The switch features 2.54mm pitch and is suitable for a wide range of PCB applications due to its small size.

  • Raised actuator
  • SPDT contacts
  • On-On operation
  • Right angle PCB terminals
  • Rating: 0.5A 12V
  • Contact material: gold over nickel
  • Body dimensions: 10 x 6.5 x 2.6mm (length x height x thickness)
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold over nickel
    Contact rating 0.5A 12V
    Current rating 0.5A
    Electrical life 2000 Cycles
    Material PA66
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to 85°C
    Pitch 2.54mm
    Product series NK
    Switch operation On-On
    Terminal type Solder
    Voltage rating 12V
