NK236W On-On Sub-Miniature Flush Actuator Right Angle PCB Slide Switch 500mA 12V SPDT APEM

by APEM
SKU 486227

MPN: NK236W

Availability:
98 in stock
Original price £1.79 - Original price £1.79
Original price
£1.79
£1.79 - £1.79
Current price £1.79

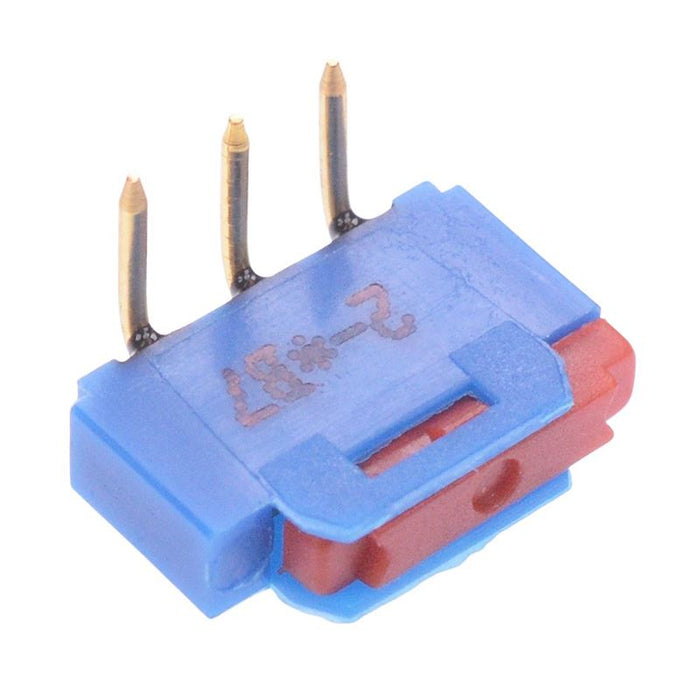

The NK236W is a right angle sub-miniature slide switch featuring a flush actuator and SPDT contacts, manufactured by APEM. The switch features 2.54mm pitch and is suitable for a wide range of PCB applications due to its small size.

  • Flush actuator
  • SPDT contacts
  • On-On operation
  • Right angle PCB terminals
  • Rating: 0.5A 12V
  • Contact material: gold over nickel
  • Body dimensions: 10 x 6.5 x 2.6mm (length x height x thickness)
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration SPDT
    Contact Material Gold over nickel
    Contact Rating 0.5A 12V
    Current Rating 0.5A
    Electrical Life 2000 Cycles
    Material PA66
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to 85°C
    Pitch 2.54mm
    Product Series NK
    Switch Operation On-On
    Terminal Type Solder
    Voltage Rating 12V
