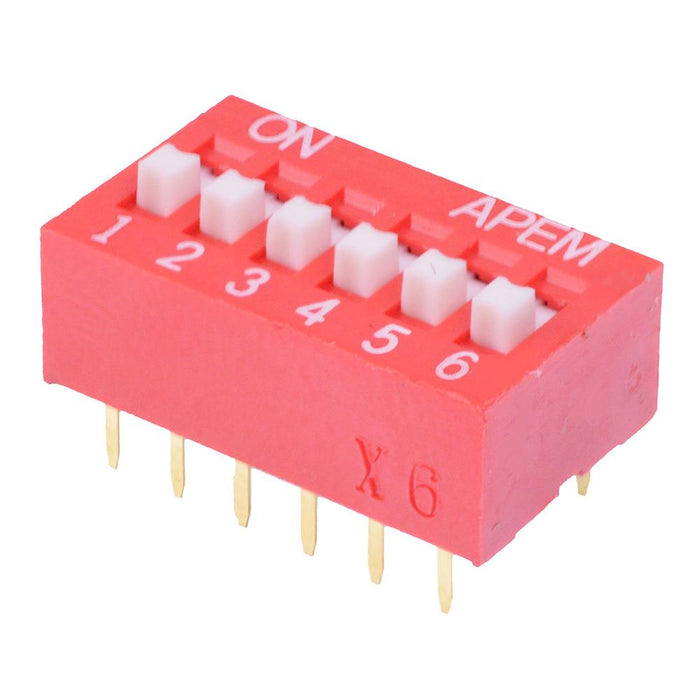

NDS-06-TV APEM 6 Way Raised Actuator DIP Switch SPST
by APEM
SKU 487637
MPN: NDS-06TV
Availability:
513 in stock
Original price
£0.81
-
Original price
£0.81
Original price
£0.81
Inc VAT
£0.81
-
£0.81
Current price
£0.81
Inc VAT
The NDS-06-TV is a 6 way standard profile dual in-line switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switch features gold plated self-cleaning contacts, making them suitable for a wide range of through hole applications.
6 way SPST contacts Raised actuator 2.54mm x 7.62mm pitch Switching contact rating: 25mA 24VDC Non-switching contact rating: 100mA 50VDC Electrical life: 2000 cycles per switch Contact material: gold plated Tape seal
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Gold Plated |
| Contact rating | 25mA 24VDC |
| Current rating | 25mA |
| Electrical life | 2,000 Cycles |
| Material | PBT |
| Mounting style | Through Hole |
| Number of positions | 2 |
| Number of ways | 6 |
| Operating force | 1000g Max |
| Operating temperature | -40°C to 85°C |
| Pitch | 2.54mm |
| Product series | NDS |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
