NDPL12V APEM 12-Way Long Actuator Piano DIP Switch SPST
by APEM
SKU 488196
MPN: DPL12V
Availability:
107 in stock
Original price
£0.80
-
Original price
£0.80
Original price
£0.80
Inc VAT
£0.80
-
£0.80
Current price
£0.80
Inc VAT

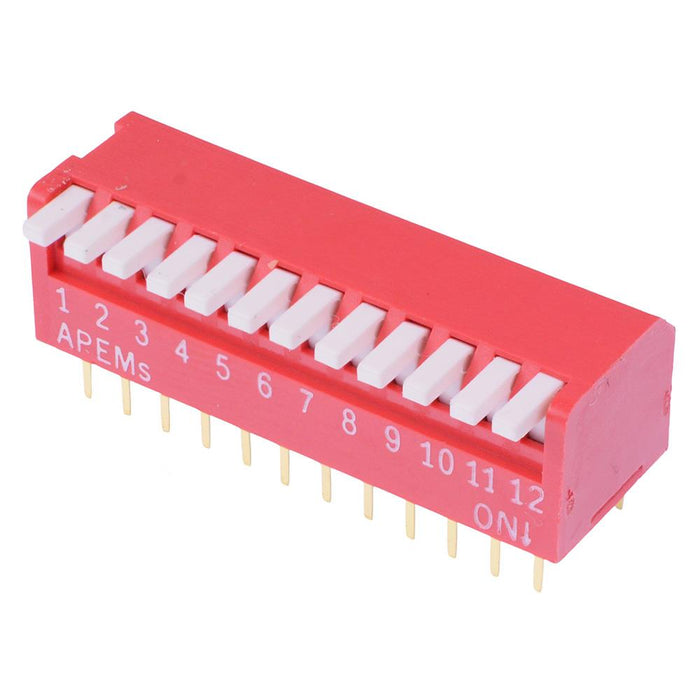

The NDPL12V is a 12 way piano style DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.
Long actuator 12 ways Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated brass terminals 2.54mm pitch
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Gold Plated |
| Contact rating | 100mA 50VDC |
| Current rating | 25mA |
| Electrical life | 2,000 Cycles |
| Material | PBT |
| Mounting style | Through Hole |
| Number of positions | 2 |
| Number of ways | 12 |
| Operating force | 400gf Max |
| Operating temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Product series | NDPL |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
