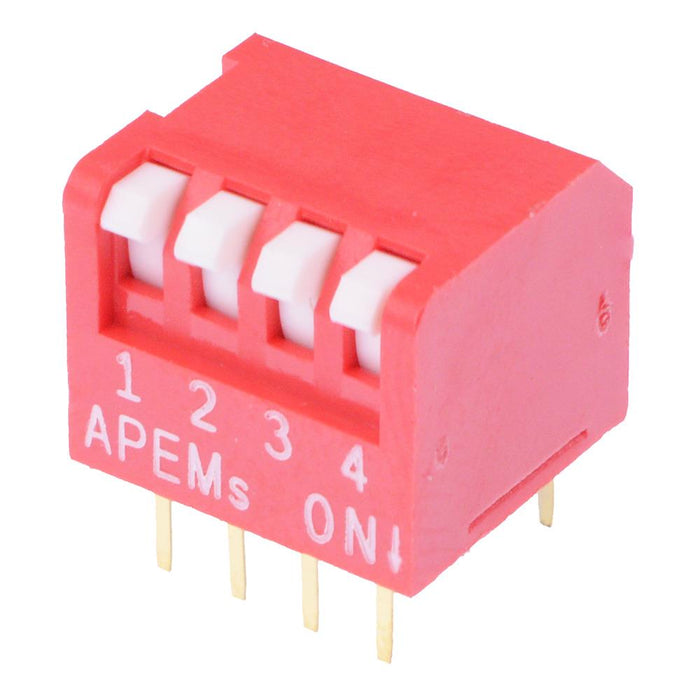

NDP04V APEM 4-Way Piano DIP Switch SPST

by APEM
SKU 487486

MPN: DP04V

Availability:
763 in stock
Original price £0.59 - Original price £0.59
Original price
£0.59
£0.59 - £0.59
Current price £0.59
The NDP04V is a 4 way piano style DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.

  • 4 ways
  • Switch rating: 25mA 24VDC
  • Contact rating: 100mA 50VDC
  • Gold plated brass terminals
  • 2.54mm pitch
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Colour Red
    Contact Configuration SPST
    Contact Material Gold Plated
    Contact Rating 100mA 50VDC
    Current Rating 25mA
    Electrical Life 2,000 Cycles
    Material PBT
    Mounting Style Through Hole
    Number of Positions 2
    Number of Ways 4
    Operating Temperature -20°C to +70°C
    Pitch 2.54mm
    Product Series NDP
    Switch Operation On-Off
    Terminal Type Solder
    Voltage Rating 24VDC
