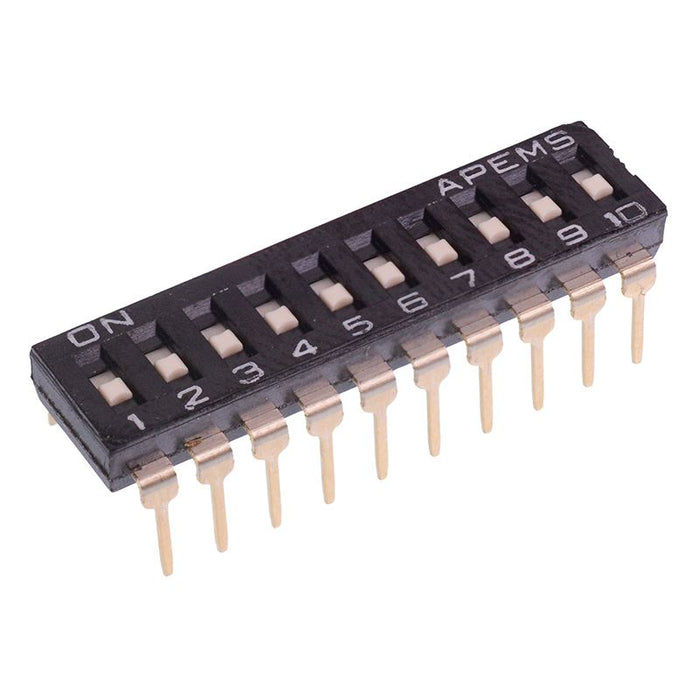

NDIR-10STV APEM 10 Way Through Hole DIP Switch SPST
by APEM
SKU 486224
MPN: NDIR-10STV
Availability:
77 in stock
Original price
£1.38
-
Original price
£1.38
Original price
£1.38
Inc VAT
£1.38
-
£1.38
Current price
£1.38
Inc VAT
The NDIR-10STV is a 10 way standard DIP switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switches feature excellent reliability and self-cleaning contacts, making them suitable for a wide range of through hole applications.
10 ways SPST contacts 2.54mm x 7.62mm pitch Switching contact rating: 25mA 24VDC Non-switching contact rating: 100mA 50VDC Electrical life: 2000 cycles per switch Contact material: gold over nickel plated copper alloy
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Black |
| Contact configuration | SPST |
| Contact material | Gold over nickel plated copper alloy |
| Contact rating | 25mA 24VDC |
| Current rating | 25mA |
| Electrical life | 2,000 Cycles |
| Material | PBT |
| Mounting style | Through Hole |
| Number of positions | 2 |
| Number of ways | 10 |
| Operating force | 1000g Max |
| Operating temperature | -20°C to 85°C |
| Pitch | 2.54mm |
| Product series | NDI |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
