NDIR-08STV APEM 8 Way Through Hole DIP Switch SPST

by APEM
SKU 486223

MPN: NDIR-08STV

Availability:
79 in stock
Original price £1.22 - Original price £1.22
Original price
£1.22 Inc VAT
£1.22 - £1.22
Current price £1.22 Inc VAT

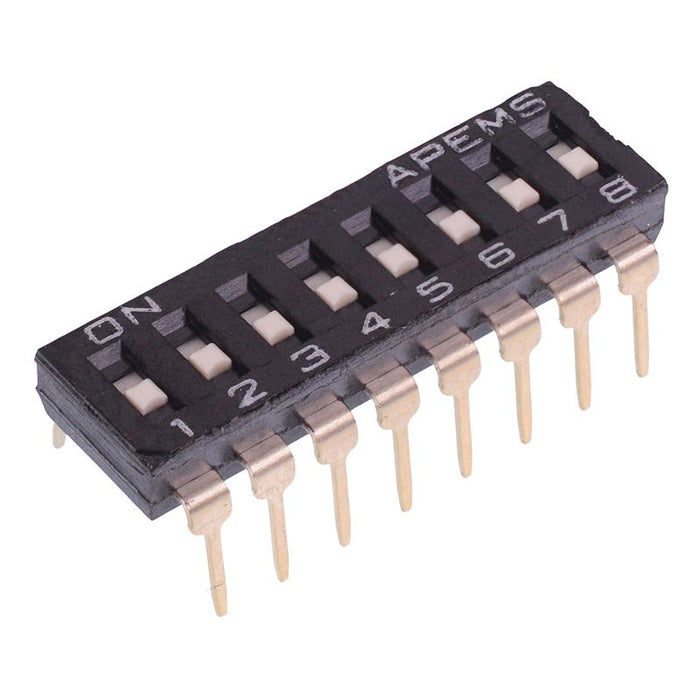

The NDIR-08STV is a 8 way standard DIP switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switches feature excellent reliability and self-cleaning contacts, making them suitable for a wide range of through hole applications.

  • 8 ways
  • SPST contacts
  • 2.54mm x 7.62mm pitch
  • Switching contact rating: 25mA 24VDC
  • Non-switching contact rating: 100mA 50VDC
  • Electrical life: 2000 cycles per switch
  • Contact material: gold over nickel plated copper alloy
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Black
    Contact configuration SPST
    Contact material Gold over nickel plated copper alloy
    Contact rating 25mA 24VDC
    Current rating 25mA
    Electrical life 2,000 Cycles
    Material PBT
    Mounting style Through Hole
    Number of positions 2
    Number of ways 8
    Operating force 1000g Max
    Operating temperature -20°C to 85°C
    Pitch 2.54mm
    Product series NDI
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 24VDC
