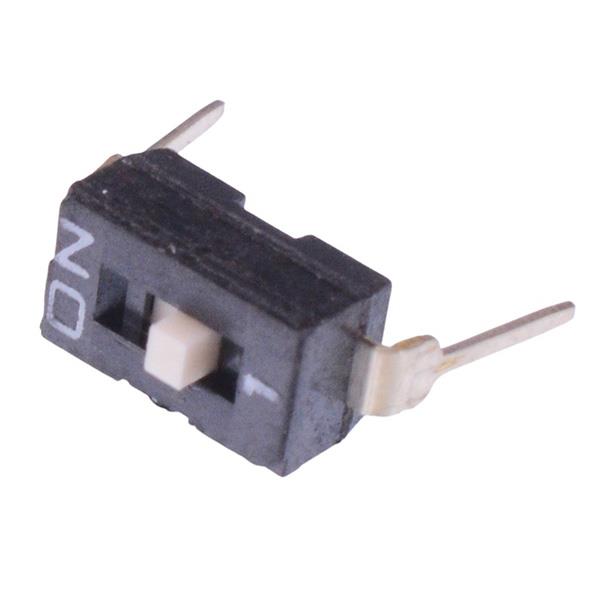

NDI-01SV APEM 1-Way 2.54mm Low Profile PCB Through Hole DIP Switch SPST
by APEM
SKU 487907
MPN: NDI-01SV
Availability:
454 in stock
Original price
£0.40
-
Original price
£0.40
Original price
£0.40
Inc VAT
£0.40
-
£0.40
Current price
£0.40
Inc VAT
The NDI-01SV is a 1 way through hole DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for PCB applications.
Raised actuator 1 way Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated brass terminals 2.54mm pitch
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Black |
| Contact configuration | SPST |
| Contact material | Gold Plated Brass |
| Contact rating | 100mA 50VDC |
| Current rating | 25mA |
| Electrical life | 2,000 Cycles |
| Material | UL94-V0 |
| Mounting style | Through Hole |
| Number of positions | 2 |
| Number of ways | 1 |
| Operating temperature | -20°C to +85°C |
| Pitch | 2.54mm |
| Product series | NDI |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
