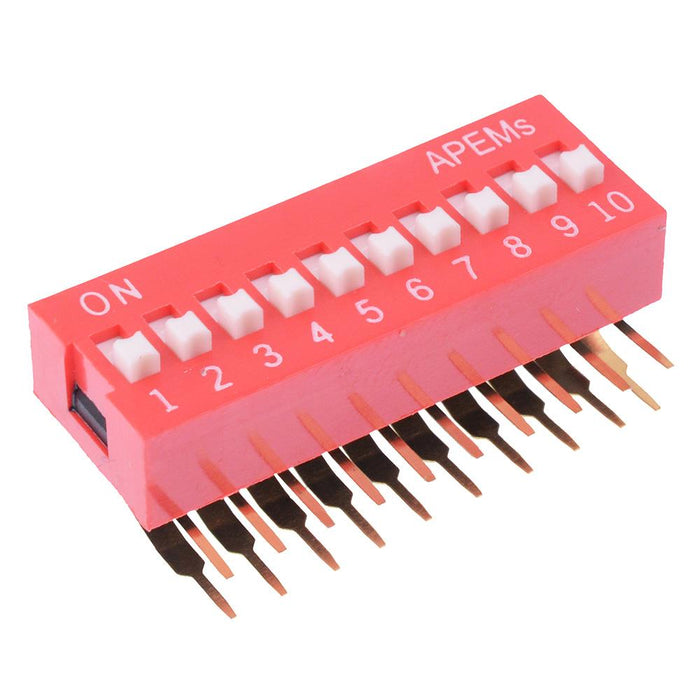

NDA10TV APEM 10-Way Right Angle DIP Switch SPST

by APEM
SKU 487471

MPN: DA10TV

Availability:
Out of stock
Sold out
Original price £0.91 - Original price £0.91
Original price
£0.91
£0.91 - £0.91
Current price £0.91
The NDA10TV is a 10 way right angle DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.

  • 10 ways
  • Switch rating: 25mA 24VDC
  • Contact rating: 100mA 50VDC
  • Gold plated brass terminals
  • 2.54mm pitch
  • Tape seal
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Colour Red
    Contact Configuration SPST
    Contact Material Gold Plated
    Contact Rating 100mA 50VDC
    Current Rating 25mA
    Electrical Life 2,000 Cycles
    Material PBT
    Mounting Style Through Hole
    Number of Positions 2
    Number of Ways 10
    Operating Temperature -20°C to +70°C
    Pitch 2.54mm
    Product Series NDA
    Switch Operation On-Off
    Terminal Type Solder
    Voltage Rating 24VDC
