NDA08TV APEM 8-Way Right Angle DIP Switch SPST
by APEM
SKU 487357
MPN: DA08TV
Availability:
907 in stock
Original price
£0.76
-
Original price
£0.76
Original price
£0.76
Inc VAT
£0.76
-
£0.76
Current price
£0.76
Inc VAT

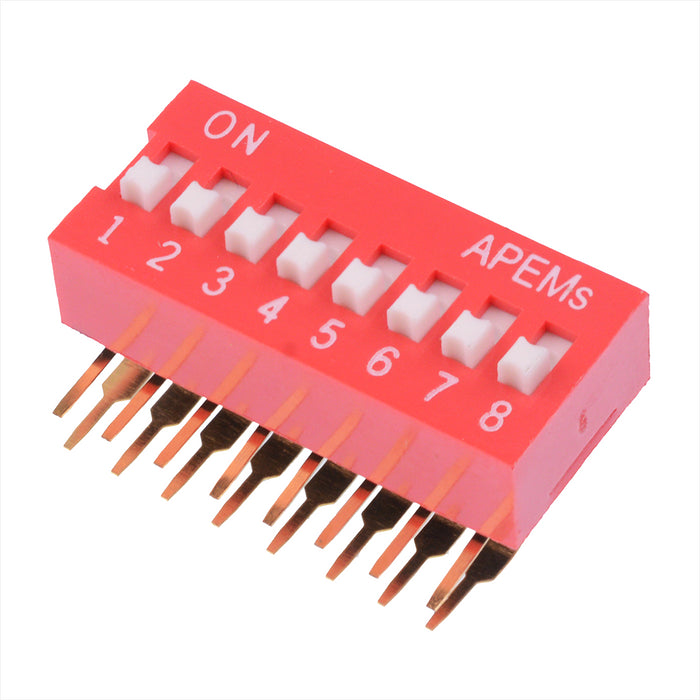

The NDA08TV is a 8 way right angle DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.
8 ways Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated brass terminals 2.54mm pitch Tape seal
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Gold Plated |
| Contact rating | 100mA 50VDC |
| Current rating | 25mA |
| Electrical life | 2,000 Cycles |
| Material | PBT |
| Mounting style | Through Hole |
| Number of positions | 2 |
| Number of ways | 8 |
| Operating temperature | -20°C to +70°C |
| Pitch | 2.54mm |
| Product series | NDA |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
