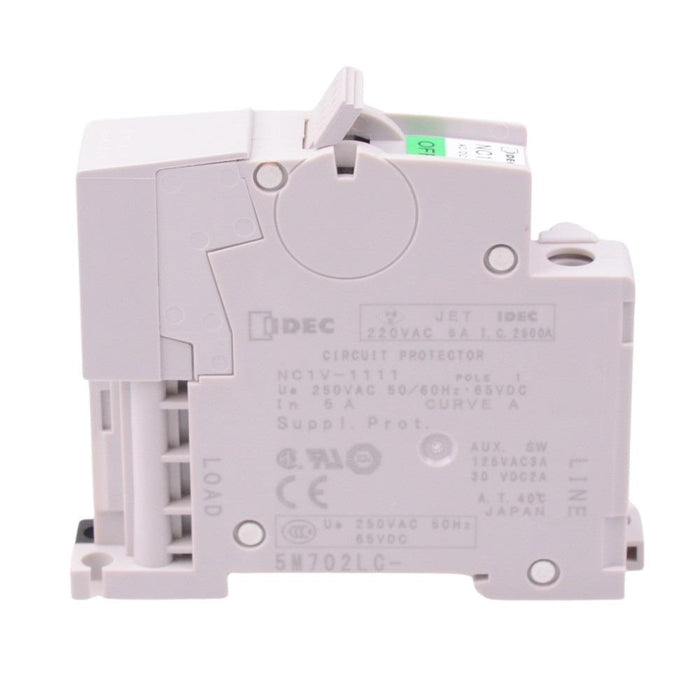

NC1V-1111-5AA IDEC 1-Pole 5A Miniature Circuit Breaker Hydraulic Magnetic DIN Rail

by IDEC
SKU 490189

MPN: NC1V-1111-5AA

Availability:
78 in stock
Original price £42.84 - Original price £42.84
Original price
£42.84 Inc VAT
£42.84 - £42.84
Current price £42.84 Inc VAT
The NC1V-1111-5AA is a DIN rail mount industrial circuit breaker by IDEC, featuring a slim space-saving design. The circuit breakers feature excellent tripping time curve performance and flat retractable lever for safety operations. The spring-up terminals allow for use of ring terminals and feature a fingersafe design. The circuit breakers are suitable for a wide range of applications including semiconductor manufacturing equipment, electronic controllers, computers, microprocessors, communications equipment, power supplies, machine tools, motors, and more.

  • 1 pole
  • Internal circuit: series trip (current trip)
  • One auxiliary contact
  • Rated current: 5A
  • Medium time delay curve
  • Rated voltage: 250VAC, 65VDC
  • M4 terminal screw
  • Dimensions: 71.4 x 17.5 x 66mm (height x width x depth)
  • Specification
    Current rating 5A
    Interrupting capacity 2500A
    Moq 1
    Mounting style DIN Rail
    Operating temperature -10°C to +60°C
    Trip curve Medium
    Voltage rating 250VAC, 65VDC
