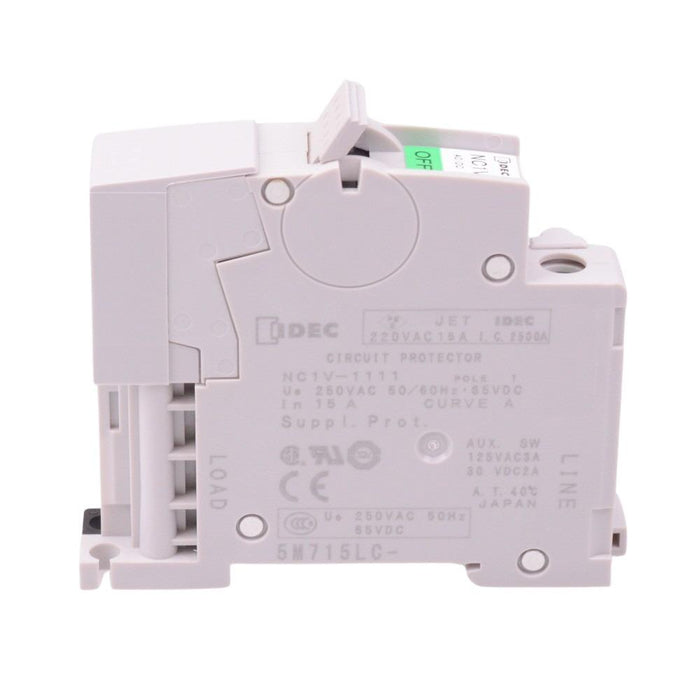

NC1V-1111-15AA IDEC 1-Pole 15A Miniature Circuit Breaker Hydraulic Magnetic DIN Rail

The NC1V-1111-15AA is a DIN rail mount industrial circuit breaker by IDEC, featuring a slim space-saving design. The circuit breakers feature excellent tripping time curve performance and flat retractable lever for safety operations. The spring-up terminals allow for use of ring terminals and feature a fingersafe design. The circuit breakers are suitable for a wide range of applications including semiconductor manufacturing equipment, electronic controllers, computers, microprocessors, communications equipment, power supplies, machine tools, motors, and more.

1 pole

Internal circuit: series trip (current trip)

One auxiliary contact

Rated current: 15A

Medium time delay curve

Rated voltage: 250VAC, 65VDC

M4 terminal screw

Dimensions: 71.4 x 17.5 x 66mm (height x width x depth)
