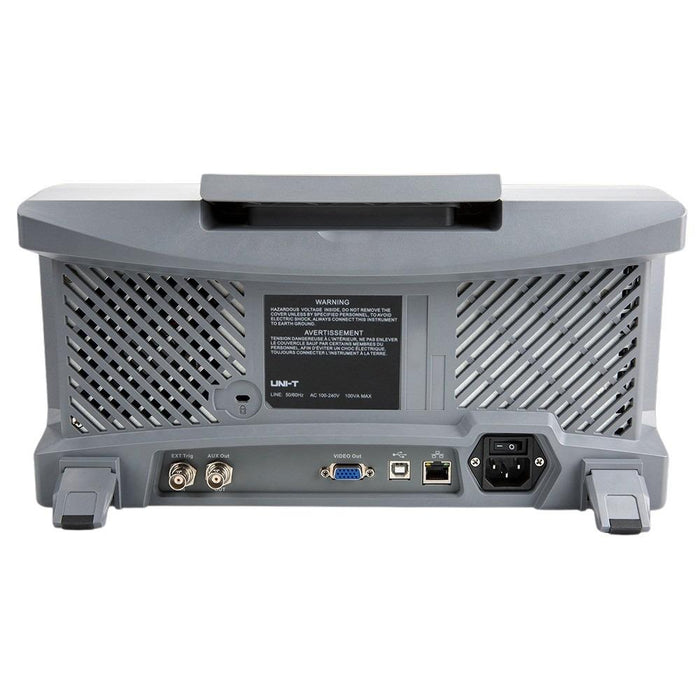

MSO3354E-S 4 Analog 16 Digital Channel Oscilloscope Touch Screen 350MHz Uni-T
by Uni-T
SKU 488969
MPN: MSO3354E-S
Availability:
Out of stock
Sold out
Original price
£2,790.40
-
Original price
£2,790.40
Original price
£2,790.40
Inc VAT
£2,790.40
-
£2,790.40
Current price
£2,790.40
Inc VAT
The MSO3354E-S digital phosphor oscilloscope is a multifunctional and high-performanceoscilloscope based on UNI-T's original Ultra Phosphor 2.0 technology. It realizes the combinationof ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals.
Bandwidth: 350MHz Real time sample rate: 2.5GSa/s Waveform capture rate: 1,000,000 wfms/s 4 analog channels, 16 digital channels Maximum memory depth: 250Mpts 8 inch interactive touch screen Waveform generator: 50MHz dual channels Rich measurement functions XY mode Ultra high capture rate 256-level grayscale display Channel split screen function Multi-Scopes 2.0 Memory depth 70Mpts per channel Rich trigger function Full memory hardware decoding Area trigger Bode plot LA Logic Analyzer
Specification
| Back order lead time | 10 Days |
| Bandwidth | 350MHz |
| Channels | 4 Analogue 16 Digital |
| Digitalanalogue | Digital |
| Display | 8 Inch Touch Screen |
| Memory depth | 250Mpts |
| Rise time | <1ns |
| Sampling rate | 2.5GSa/s |
| Vertical range | 1mV/div to 10V/div |
| Waveform capture rate | 1,000,000 wfms/s |
