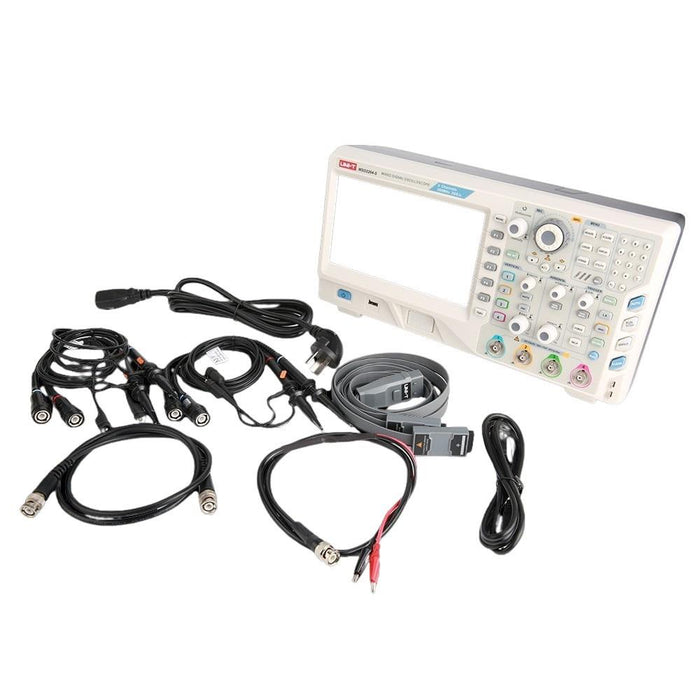

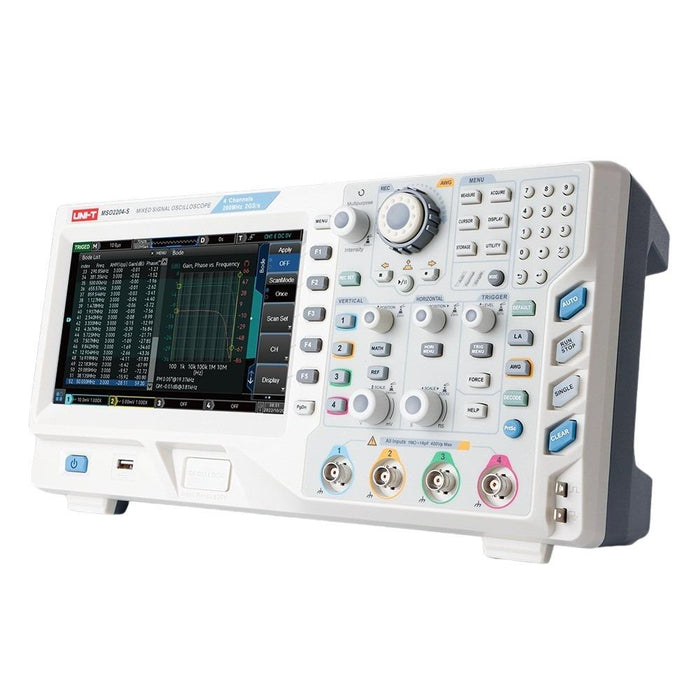

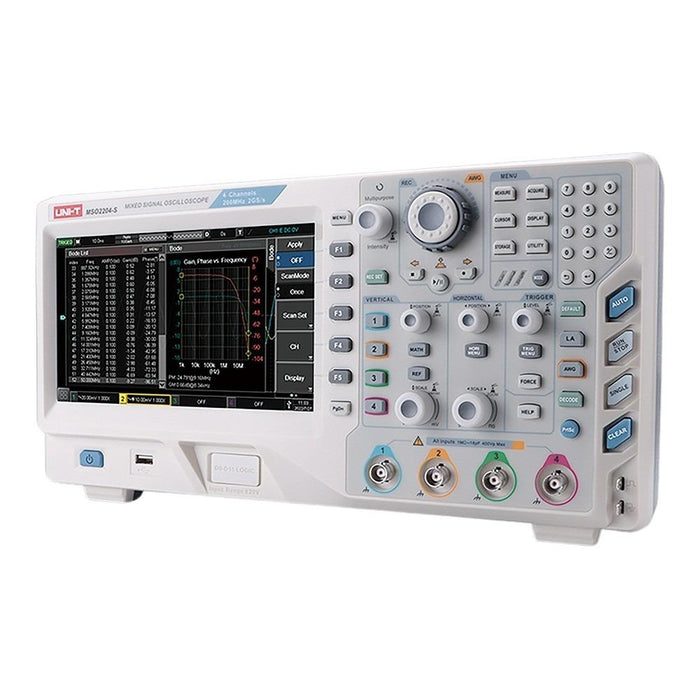

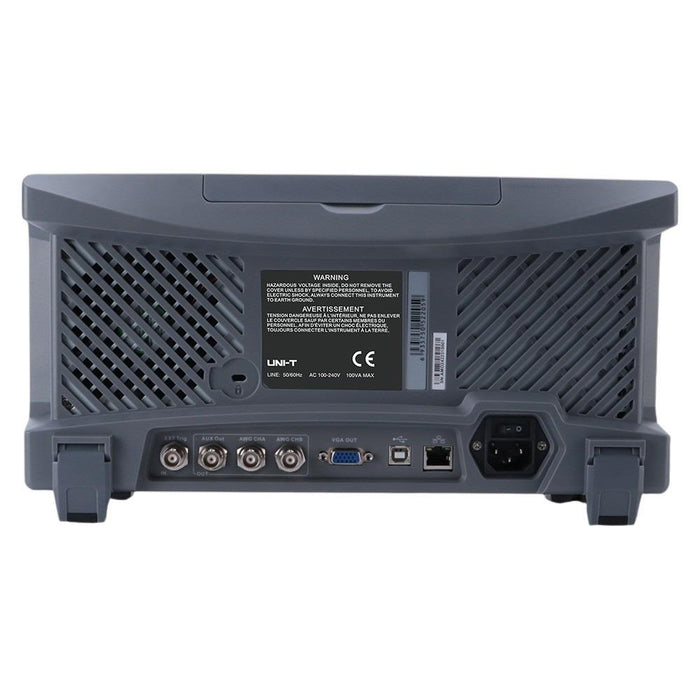

MSO2202-S 2 Analog 16 Digital Channel Oscilloscope 200MHz Uni-T

by Uni-T
SKU 488979

MPN: MSO2202-S

Availability:
Out of stock
Sold out
Original price £1,509.21 - Original price £1,509.21
Original price
£1,509.21 Inc VAT
£1,509.21 - £1,509.21
Current price £1,509.21 Inc VAT
The MSO2202-S is a digital phosphor multifunctional and high-performance oscilloscope based on UNI-T's original Ultra Phosphor technology. It realizes the combination of ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals.

  • Bandwidth: 200MHz
  • Real time sample rate: 2GSa/s
  • Waveform capture rate: 1,000,000 wfms/s
  • 2 analog channels, 16 digital channels
  • Maximum memory depth: 56Mpts
  • 8 inch interactive touch screen
  • 4M pts enhanced FFT
  • Web control
  • LA logic analyzer
  • Bode plot
  • AWG function arbitrary waveform generator
  • Area trigger
  • Full memory hardware decoding
  • Rich trigger function
  • Channel split screen function
  • 256-level grayscale display
  • Ultra high capture rate
  • XY mode
  • Rich measurement functions
  • Specification
    Back order lead time 10 Days
    Bandwidth 200MHz
    Channels 2 Analogue 16 Digital
    Digitalanalogue Digital
    Display 8 Inch Touch Screen
    Memory depth 56Mpts
    Rise time <1.8ns
    Sampling rate 2GSa/s
    Vertical range 500uV/div to 20V/div
    Waveform capture rate 1,000,000 wfms/s
