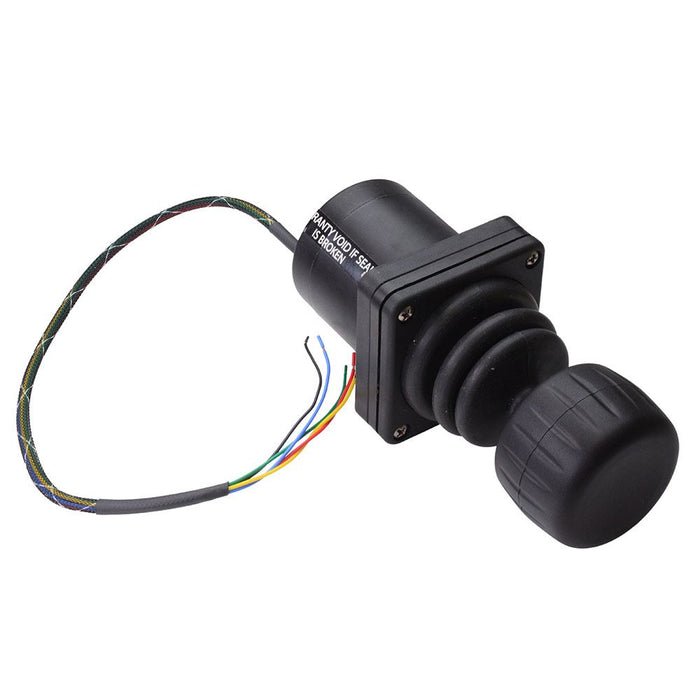

MS54N00S001 APEM Low Profile 2 Axis Hall Effect Joystick

The MS54N00S001 is a contactless hall effect joystick developed for demanding operator control applications that require a rugged, yet compact hand-operated positioning device. Utilizing only five square inches of surface area, the joystick is ideally suited for off-highway cnlosed cabin vehicles. Striking the perfect balance between size and durability, widely used applications include watercraft, agricultural, forestry and material handling vehicles.

2 axis

Low profile square front

Rated for 10 million lifecycles

Square limiter plate

Supply voltage: 5VDC

Output: 0.5V to 4.5V

Panel cut-out: 54.4mm

Mounting hole pitch: 51.1 x 51.1mm

Dimenions: 154.5 x 63.8 x 63.8mm (height x length x width)
