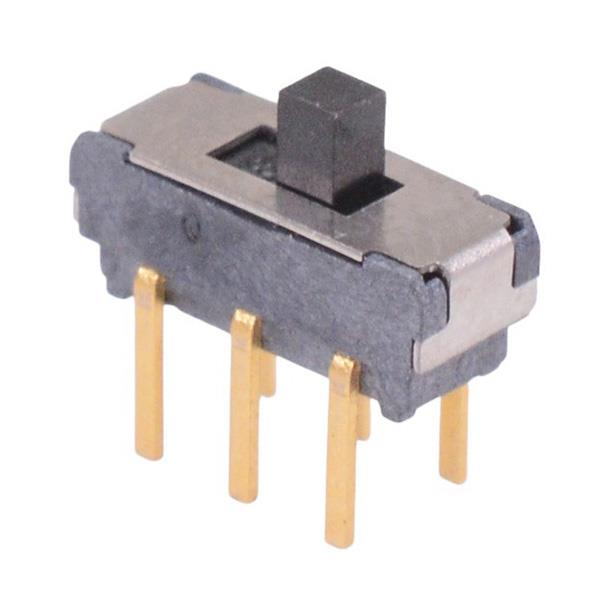

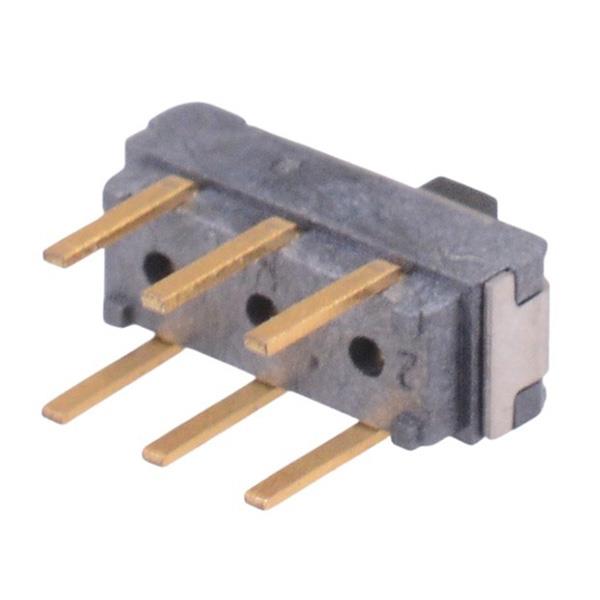

MS22G On-On Microminiature PCB Slide Switch DPDT APEM
by APEM
SKU 492521
MPN: MS22G
Availability:
219 in stock
Original price
£1.20
-
Original price
£1.20
Original price
£1.20
£1.20
-
£1.20
Current price
£1.20
The MS22G is a microminiature slide switch by APEM, featuring a ultra compact size and low profile design. The switch features DPDT contacts and is designed for through hole PCB mounting.
On-On function DPDT contacts Contact rating: 300mA 6VDC PCB pitch: 3.3 x 2.5mm Dimensions: 9.0 x 3.5 x 3.5mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver Plated |
| Contact Rating | 0.3A 6VDC |
| Current Rating | 0.3A |
| Electrical Life | 10,000 Cycles |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -10°C to +60°C |
| Pitch | 2.5mm |
| Product Series | MS |
| Switch Operation | On-On |
| Terminal Type | PCB |
| Voltage Rating | 6VDC |
