MPSA92 Bipolar PNP 300V Transistor TO92

by Diotec
SKU 480063

MPN: MPSA92

Availability:
355 in stock
Original price $0.25 - Original price $0.25
Original price $0.25
$0.25
$0.25 - $0.25
Current price $0.25

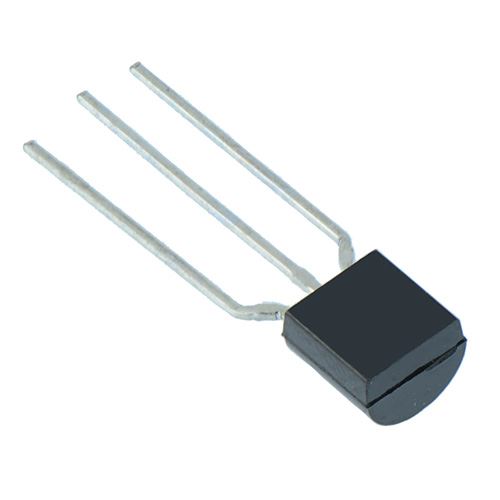

The MPSA92 is a low power NPN transistor housed in a TO92 package, suitable for signal processing, switching and amplification applications.

  • Collector emitter voltage: 300V
  • Collector base voltage: 300V
  • Collector current: 500mA
  • Power dissipation: 625mW
  • TO92 package
  • Specification
    Back Order Lead Time 7
    Collector Base Voltage 300V
    Collector Current 500mA
    Collector Emitter Voltage 300V
    DC Current Gain 40
    Maximum Operating Temperature 150°C
    MOQ 10
    Mounting Type Through Hole
    Package TO92
    Power Dissipation 625mW
    Transistion Frequency 70MHz
    Type PNP
